PERFECT MATCH FOR MOST FARMS
The two smaller models in the series-the BC5050 and BC5060-offer easy operation and sizeable capacity to meet the needs of most farms. Both feature 65-in.-wide SuperSweep™ pickups and a 283-sq.-in. feed opening, and produce 14- x 18-in.-size bales.
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

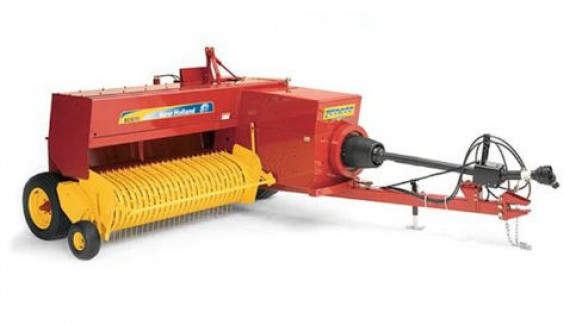

The BC5050 is an economical and durable baler for smaller operations. The low 35-PTO-hp requirement and a Class 4 driveline allow the baler to be pulled by a compact tractor. The exclusive Flow-Action® feeder system makes solid bales and provides trouble-free operation.
Specifications
BC5050
Bale Size
Cross section
14 x 18 in. (36 x 46 cm)
Length
Adjustable, 12 to 52 in. (31 to 132 cm)
SuperSweep™ Pickup
Width inside
65 in. (1.65 m)
Width on flare
70 in. (1.8 m)
Number of tines
88
Number of tine bars
4
Floating Windguard
Eight rods
Drive
V-belt to roller chain to “lost motion” reel drive
Gauge Wheel
3.00 x 12; semi-pneumatic
Hydraulic Pickup Lift
Optional
Bale Chamber
Feeding System
Flow-Action® Feeder
Number Feed Rotors
-
Packer Fork
-
Feed Opening
283 sq. in. (1826 sq. cm)
Standard Density System
Adjustable springs & tension doors
Optional Density System
-
Bale Case
Standard-Duty
Plunger
Stroke length
30 in. (76.2 cm)
Speed (540 rpm)
79 SPM
Material
High Strength Steel
Plunger Rail
Standard-Duty
Tying Mechanisms
Twine knotter
Standard-Duty
Billhook
Standard
Wire twister
-
Protection
Shearbolt
Twine capacity
4-Twine Ball
Wire capacity
-
Main Drive
Flywheel weight
248 lb (112 kg)
PTO
Power-Pivot, Three-joint PTO
PTO Category
Cat. 4
Protection
Shearbolt, overrunning and slip clutches
Gearbox
Heat-treated hypoid gears on tapered roller bearings running in an oil bath
Flotation Tires
Right side
25x7.50-15, 6PR
Left side
27x9.50-15, 6PR
Model 72 Bale Thrower
Compatible
YES
Dimensions
Height (max.)
58 in. (146 cm)
Width
108 in. (275 cm)
Length (transport less chute)
198 in. (502 cm)
Weight (twine)
3,085 lb (1399 kg)
Weight (wire)
-
Tractor Requirement*
Minimum horsepower
35 hp (26 kW)
Minimum weight
Tractor weight must be greater than baler weight; excludes bale thrower
