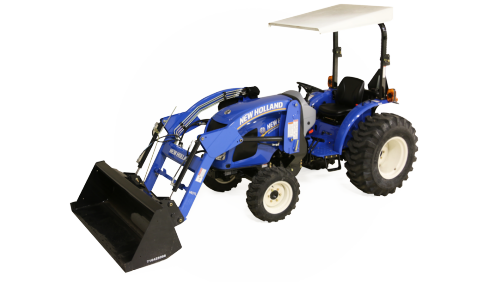

New Holland 140TL

Double tap to zoom



Sorry, currently there are no features but check back with us later.


Model 140TL
Lift capacity (bucket pivot pin, max height) lb. (kg) 1250 (567)
Lift capacity (500 mm forward, max height) lb. (kg) 1100 (499)
Lift capacity (bucket pivot pin, 1500 mm height) lb. (kg) 1500 (680)
Breakout force (bucket pivot pin) lb. (kg) 2700 (1225)
Breakout force (500 mm forward) lb. (kg) 1900 (862)
Raising time sec. 3.8
Lowering time sec. 1.7
Lowering time (float) sec.


Bucket dumping time sec. 2.2
Bucket roll back time sec. 1.7
Max lift height (under level bucket) in. (mm) 91.5 (2324)
Clearance with bucket dumped in. (mm) 64 (1626)
Max dump angle degrees 48
Reach with bucket on ground in. (mm) 74.0 (1879.6)
Bucket roll back angle degrees 30.4
