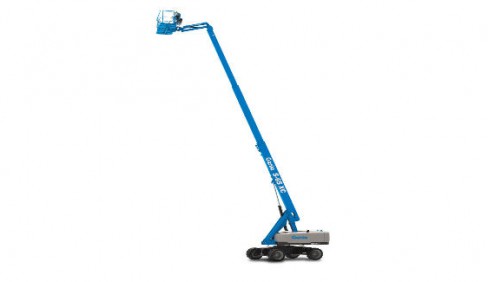

Genie S-60 XC™ and S-65 XC™

Double tap to zoom



Features

Measurements

S-60 XC
• 65 ft 8.5 in  (20.20 m) working height
• 50 ft 10 in (15.49 m) horizontal reach
• 660 lbs (300 kg) unrestricted and  1,000 lbs (454 kg) restricted lift capacity


S-65 XC
• 71 ft 1 in (21.84 m) working height
• 54 ft 2 in (16.51 m) horizontal reach
• 660 lbs (300 kg) unrestricted and  1,000 lbs (454 kg) restricted lift capacity

Productivity

• Self-leveling platform
• 160° hydraulic platform rotation
•Proportional joystick controls
• Fuel select switch on platform and ground control panels (Gas/LPG models)
• Active oscillation
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 360° continuous turntable rotation
• Positive traction drive
• Two speed wheel motors
• Telematics ready connector
• Platform Load sense system
• Entry Toeboard
• Hydraulic oil cooler
• Alarm package
•  Work tray
• Lift Guard™ Contact Alarm

Power

• 12 V DC auxiliary power
• Anti-restart engine protection
• Auto engine fault shutdown
• Swing out engine tray
• Intake air heater (Deutz engine)

Platform Options

• Steel 8 ft (2.44 m) tri entry with side swing gate (standard)
• Steel 6 ft (1.83 m) dual entry with side swing gate
• Steel 4 ft (1.22 m) Jib Options
• Non-jib (S-60 only)
• 5 ft (1.52 m) jib boom (S-65 only)

Engine Options

• 48 hp (35.79 kW) Deutz diesel T4f* (standard)
• 49 hp (36.54 kW) Perkins diesel T4f*
• 74 hp (55.18 kW) Deutz turbo diesel T4f*
• 60hp (44.74 kW) Ford gas/LPG

Drive Options

• 4WD Tire Options
• Rough terrain foam-filled (standard)
• Rough terrain non-marking foam-filled

Productive Options

• Half-mesh platform inserts
• Platform top auxiliary rail
• Lift Power™
- 3 kW AC Generator
- 12 kW 240 V / 60 Hz Welder  Ready package
-12 kW Welder Equipped, Select Lincoln or Miller (12 kW options include a fire extinguisher and fireproof sleeves)
• Air line to platform
• Specialty hydraulic oil (cold weather, fire resistant, or biodegradable)
• Hostile environment kit
• Deluxe hostile environment kit
• Aircraft protection package (6 ft platform)
• Thumb rocker steer
• Panel cradle package
• Lockable platform control box covers
• Second battery
• Tow package
• Work light package
• Operator Protective Structure*****
• Fall Arrest Bar

Power Options

• Engine gauge package***
• Cold Weather Packages
• Diesel scrubber/muffler  (catalytic muffler)****
• LPG tank 33.5 lb (15.19 kg) capacity
• Intake air pre-cleaner****

Specifications

Max Platform Height S-60 XC, 59 ft 8.5 in / S-65 XC, 65 ft 1 in | S-60 XC, 18.20 m / S-65 XC, 19.84 m
Max Horizontal Reach S-60 XC, 50 ft 10 in / S-65 XC, 54 ft 2 in | S-60 XC, 15.49 m / S-65 XC, 16.51 m
Below Ground Reach 5 ft 7 in | 1.70 m
Platform Capacity 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
Machine Width and Length 8 ft 2 in, 31 ft 11 in | 2.49 m, 9.73 m
