Features
Stackcruiser® Self-Propelled Bale Wagons
CONSISTENT STACKS OF TIGHTLY PACKED BALES WITHOUT BREAKING A SWEAT.
New Holland introduces three new Stackcruiser® self-propelled bale wagons, including one dedicated exclusively to handling large square bales. No matter which model you choose, you’ll unload tight, even stacks of bales without manual labor.
DRIVETRAIN
SMOOTH, EFFICIENT POWER
At 190 horsepower, today’s Stackcruiser® self propelled bale retrievers deliver more power and efficiency than ever before—just what you need to handle long days of loading, hauling and stacking.
CAB
PRECISION AND EASE
You stack bales in comfort and with precise control from the quiet, iso-mounted Stackcruiser® cab. Sit in the air-ride, adjustable swivel seat featuring lots of legroom thanks to the design of the tilt steering column and right-hand control console.
STACK COMMAND™ II SYSTEM
THE BEST WAY TO PICK UP BALES
The new Stack Command™ II monitor provides up to 35 pre-programmed stack patterns as well as room for 20 custom patterns that you can program — all available to you at the touch of a button.
MIL-STAK® ATTACHMENT
EASILY HANDLE LARGE SQUARE BALES

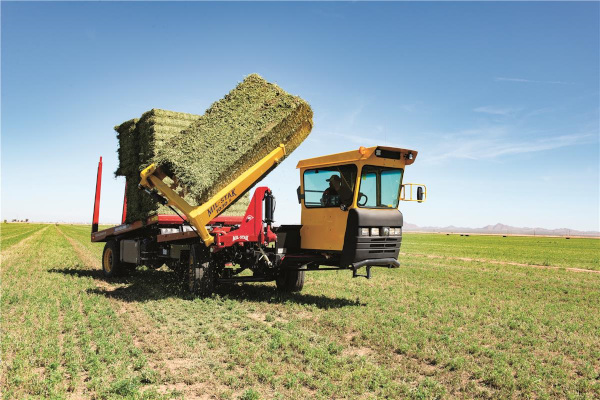

Each StackCruiser hay wagon model is factory-ready to accept the optional Mil-Stak® large square bale clamp to add versatility to your bale wagon. Use it to stack 3x3 or 3x4 bales on the wagon. It is also easily removed to switch back to small bale pickup.
Specifications
| Stackcruiser® 105 | |
| Overall length | |
| Overall length cm (in) | 953 (375) |
| Overall width | |
| Loader raised, stabilizers off cm (in) | 295 (116) w/ BB loader |
| Loader raised, stabilizers at widest position cm (in) | NA |
| Loader down, stabilizers at widest position cm (in) | 505 (199), w/bale clamp fully open, no stabilizers |
| Overall height cm (in) | NA |
| Overall height to top of stabilizers cm (in) | NA |
| Clearance needed to unload cm (in) | w/ 91 cm x 91 cm (3 ft x 3 ft) bales: 553 (218) - w/ 91 cm x 122 cm (3 ft x 4 ft) bales: 571 (225) |
| Ground clearance | |
| Front axle cm (in) | 24 (9 5/8) |
| Rear axle cm (in) | 25 (10) @ diff. housing, 15 (6) at leaf spring U-bolts |
| Track width (center to center) | |
| Front axle cm (in) | 206 (80.25) |
| Rear axle cm (in) | 191 (75) |
| Wheelbase cm (in) | 447 (176) |
| Weight | |
| Total with fuel, oil, and coolant kg (lbs.) | 7889 (17392) w/Mil-Stak attachment |
| Gross vehicle weight kg (lbs.) | 14969 (33000) |
| Weight box (optional) kg (lbs.) | 48 (106) empty; 275 (600) full |
| Engine | |
| Maximum power at rated speed kW (hp) | 142 (190) |
| Aspiration | Turbocharged & after cooled |
| Number of cylinders / displacement l (cu. in.) | 6 / 6.7 (408) |
| Transmission | |
| Type | Allison 2500 RDS (Rugged Duty Service), 5-speed automatic |
| Rear Axle | |
| Type | Dana Spicer 22065T, 2-speed w/ locking rear differential |
| Brakes | |
| Front | 4x70 Quadratic (4 piston) disc brakes, 15 in / 38 cm |
| Rear | 4x70 Quadratic (4 piston) disc brakes, 15-3/8 in / 39 cm |
| Hydraulic system | |
| Type | Dual: open center and closed center |
| Open center system | |
| Pump type/system served | Gear/Power steering, brake booster, park brake |
| Maximum flow l/min (gpm) | 26.5 (7.0) |
| Relief pressure bar (psi) | 159 (2300) |
| Pump type/system served | Gear/Mil-Stak loader |
| Maximum flow l/min (gpm) | 70 (18) |
| Relief pressure bar (psi) | 159 (2300) |
| Closed center system pump | |
| Pump type/system served | Load-sensing variable piston/cylinders |
| Maximum flow l/min (gpm) | 119 (31.5) |
| Relief pressure bar (psi) | 141 (2050) |
| Standby pressure bar (psi) | 12.4 (180) |
| Tire size | |
| Front | 385/65R 22.5 Tubeless |
| Rear | 445/50R 22.5 Tubeless |
| Bales | |
| Sizes capable - Height x Width x Length cm (in) | 91 cm x 91 cm x 244 (3 ft x 3 ft x 8 ft) or 91 cm x 122 cm x 244 (3 ft x 4 ft x 8 ft) |
| Optimum length of bale for best tie-tier | NA |
| Bale capacity | |
| 36 cm x 46 cm x 91-104 cm (14 in x 18 in x 36-41 in) | NA |
| 41 cm x 46 cm x 91-104 cm (16 in x 18 in x 36-41 in) | NA |
| 41 cm x 46 cm x 112-122 cm (16 in x 18 in x 44-48 in) | NA |
| 3-Tie bales (all sizes) x 117 cm (46 in) | NA |
| 91 cm x 91 cm x 244 (3 ft x 3 ft x 8 ft) | 15 (w/Mil-Stak attachment) |
| 91 cm x 122 cm x 244 (3 ft x 4 ft x 8 ft) | 10 (w/Mil-Stak attachment) |
| Bale weight | |
| 36 cm x 46 cm x 91-104 cm (14 in x 18 in x 36-41 in) kg (lbs.) | NA |
| 41 cm x 46 cm x 91-104 cm (16 in x 18 in x 36-41 in) kg (lbs.) | NA |
| 41 cm x 46 cm x 112-122 cm (16 in x 18 in x 44-48 in) kg (lbs.) | NA |
| 3-Tie bales (all sizes) x 117 cm (46 in) kg (lbs.) | NA |
| Maximum weight of load kg (lbs.) | 7080 (15608) |
| Stack | |
| Maximum height cm (in) | 455 (179), w/91 cm x 91 cm (3 ft x 3 ft) bales, 488 (192, w/91 cm x 122 cm (3 ft x 4 ft) bales |
| Maximum width cm (in) | 183 x 244 (72 x 96)) w/91 cm x 91 cm (3 ft x 3 ft) bales, 183 x 244 (72 x 96) w/91 cm x 122 cm (3 ft x 4 ft) bales |
| Capacities | |
| Fuel tank l (gal) | 261 (69) |
| DEF tank l (gal) | 47 (12.4) |
NOTE: The Stackcruiser 105 is not equipped with side stabilizer, small square bale loader or first table.
