New Holland Stackcruiser® 102

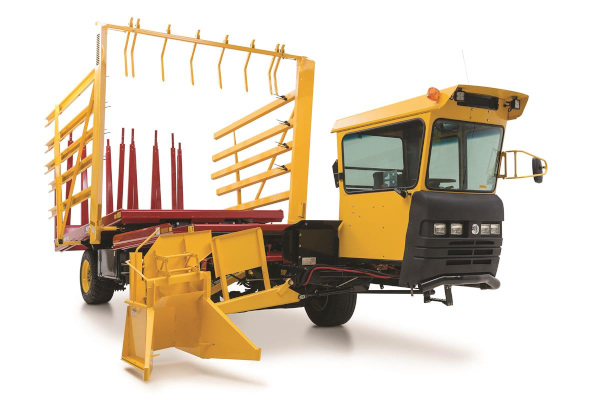

New Holland Stackcruiser® 102 for sale at Berchtold Equipment Co., California

Double tap to zoom

New Holland Stackcruiser® 102 for sale at Berchtold Equipment Co., California



Features

Stackcruiser® Self-Propelled Bale Wagons

CONSISTENT STACKS OF TIGHTLY PACKED BALES WITHOUT BREAKING A SWEAT.
New Holland introduces three new Stackcruiser® self-propelled bale wagons, including one dedicated exclusively to handling large square bales. No matter which model you choose, you’ll unload tight, even stacks of bales without manual labor.

DRIVETRAIN

SMOOTH, EFFICIENT POWER
At 190 horsepower, today’s Stackcruiser® self propelled bale retrievers deliver more power and efficiency than ever before—just what you need to handle long days of loading, hauling and stacking.

CAB

PRECISION AND EASE
You stack bales in comfort and with precise control from the quiet, iso-mounted Stackcruiser® cab. Sit in the air-ride, adjustable swivel seat featuring lots of legroom thanks to the design of the tilt steering column and right-hand control console.

STACK COMMAND™ II SYSTEM

THE BEST WAY TO PICK UP BALES
The new Stack Command™ II monitor provides up to 35 pre-programmed stack patterns as well as room for 20 custom patterns that you can program — all available to you at the touch of a button.

MIL-STAK® ATTACHMENT

EASILY HANDLE LARGE SQUARE BALES
Each StackCruiser hay wagon model is factory-ready to accept the optional Mil-Stak® large square bale clamp to add versatility to your bale wagon. Use it to stack 3x3 or 3x4 bales on the wagon. It is also easily removed to switch back to small bale pickup.

Specifications

Stackcruiser® 102
Overall length
Overall length cm (in) 953 (375)
Overall width
Loader raised, stabilizers off cm (in) 302 (119)
Loader raised, stabilizers at widest position cm (in) 345 (136)
Loader down, stabilizers at widest position cm (in) 417 (164)
Overall height cm (in) 447 (176)
Overall height to top of stabilizers cm (in) 429 (169)
Clearance needed to unload cm (in) w/ 36 cm x 46 cm (14 in x 18 in) bales: 513 (202) - w/ 41 cm x 46 cm (16 in x 18 in) bales: 533 (210)
Ground clearance
Front axle cm (in) 24 (9 5/8)
Rear axle cm (in) 25 (10) @ diff. housing, 15 (6) at leaf spring U-bolts
Track width (center to center)
Front axle cm (in) 206 (80.25)
Rear axle cm (in) 191 (75)
Wheelbase cm (in) 447 (176)
Weight
Total with fuel, oil, and coolant kg (lbs) 8386 (18488)
Gross vehicle weight kg (lbs) 14969 (33000)
Weight box (optional) kg (lbs) 48 (106) empty; 275 (600) full
Engine
Maximum power at rated speed kW (hp) 142 (190)
Aspiration Turbocharged & after cooled
Number of cylinders / displacement l (cu. in.) 6 / 6.7 (408)
Transmission
Type Allison 2500 RDS (Rugged Duty Service), 5-speed automatic
Rear Axle
Type Dana Spicer 22065T, 2-speed w/ locking rear differential
Brakes
Front 4x70 Quadratic (4 piston) disc brakes, 15 in / 38 cm
Rear 4x70 Quadratic (4 piston) disc brakes, 15-3/8 in / 39 cm
Hydraulic system
Type Dual: open center and closed center
Open center system
Pump type/system served Gear/Power steering, brake booster, park brake
Maximum flow l/min (gpm) 26.5 (7.0)
Relief pressure bar (psi) 159 (2300)
Pump type/system served Gear/Hydraulic motors
Maximum flow l/min (gpm) 70 (18)
Relief pressure bar (psi) 159 (2300)
Closed center system pump
Pump type/system served Load-sensing variable piston/cylinders
Maximum flow l/min (gpm) 119 (31.5)
Relief pressure bar (psi) 141 (2050)
Standby pressure bar (psi) 12.4 (180)
Tire size
Front 385/65R 22.5 Tubeless
Rear 445/50R 22.5 Tubeless
Bales
Sizes capable - Height x Width x Length cm (in) 35 x 46 x 91-104 (14 x 18 x 36-41) and 41 x 46 x 91-104 (16 x 18 x 36-41)
Optimum length of bale for best tie-tier 97 (38) [for 35 x 46 (14 x 18) bales] or 102 (40) [for 41 x 46 (16 x 18) bales]
Bale capacity
36 cm x 46 cm x 91-104 cm (14 in x 18 in x 36-41 in) 161
41 cm x 46 cm x 91-104 cm (16 in x 18 in x 36-41 in) 161
41 cm x 46 cm x 112-122 cm (16 in x 18 in x 44-48 in) NA
3-Tie bales (all sizes) x 117 cm (46 in) NA
91 cm x 91 cm x 244 (3 ft x 3 ft x 8 ft) 15 (w/Mil-Stak attachment)
91 cm x 122 cm x 244 (3 ft x 4 ft x 8 ft) 10 (w/Mil-Stak attachment)
Bale weight
36 cm x 46 cm x 91-104 cm (14 in x 18 in x 36-41 in) kg (lbs) 23 - 34 (50 - 75)
41 cm x 46 cm x 91-104 cm (16 in x 18 in x 36-41 in) kg (lbs) 32 - 41 (70 - 90)
41 cm x 46 cm x 112-122 cm (16 in x 18 in x 44-48 in) kg (lbs) NA
3-Tie bales (all sizes) x 117 cm (46 in) kg (lbs) NA
Maximum weight of load kg (lbs) 6583 (14512)
Stack
Maximum height cm (in) 411 (162), w/41 cm x 46 cm (16 in x 18 in) bales
Maximum width cm (in) 213 x 312 ( 84 x 123) w/36 cm x 46 cm ( 14 in x 18 in) bales, 244 x 312 ( 96 x 123) w/41 cm x 46 cm ( 16 in x 18 in) bales
Capacities
Fuel tank l (gal) 261 (69)
DEF tank l (gal) 47 (12.4)
