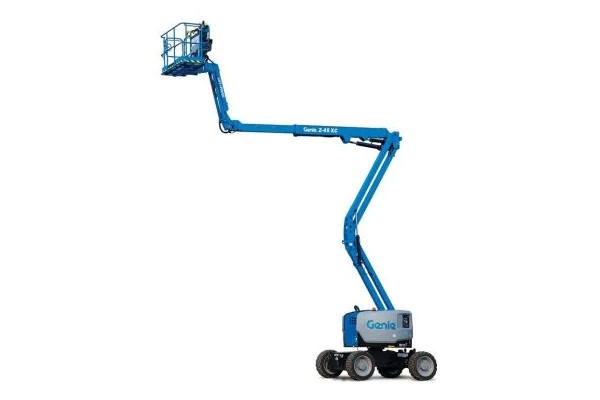

Genie Z-45 XC

Double tap to zoom

Load sense technology for accurate load weighing and zero-load field calibration
Rough terrain capabilities include 45% gradeability
Updated oscillating system boasts faster response time
Commonality in design and accessories with other Genie booms for easy parts stocking

Models	Z-45 XC	Z-45 HF
Measurements	US	US
Working height max.(1)	51 ft 6 in	51 ft 6 in
Platform height max.	45 ft 6 in	45 ft 6 in
Horizontal reach max.	24 ft 9 in	24 ft 9 in
Up and over clearance max.	24 ft 5 in	24 ft 5 in
Platform length	2 ft 6 in	2 ft 6 in
Platform width	6 ft	6 ft
Height - stowed (tires)	7 ft 4 in	7 ft 4 in
Length - stowed (tires)	21 ft 10 in	21 ft 10 in
Width (tires)	7 ft 6 in	8 ft 5 in
Wheelbase	6 ft 8 in	6 ft 8 in
Ground clearance - center (tires)	14.8 in	14.8 in
Productivity
Lift capacity max. - unrestricted	660 lb	600 lb
Lift capacity max. - restricted 454 kg Platform rotation 160°	1,000 lb	1,000 lb
Platform rotation	160°	160°
Jib boom length	5 ft	5 ft
Vertical jib rotation	133°	133°
Turntable rotation	355°	355°
Turntable tailswing	0 in	0 in
Drive speed - stowed (tires) (2)	4.5mph	4.5mph
Drive speed - raised (tires)	0.61mph	0.61mph
Gradeability - stowed(2)	45%	45%
Tilt sensor activation (front to back/side to side)	4.5° / 4.5°	4.5° / 4.5°
Turning radius - inside/outside (tires)	5ft 6in/ 14ft 9in	5ft 6in/ 14ft 9in
Tires (foam-filled)	315/55 D20	315/55 D20
Power
Power	Diesel	Diesel
Auxiliary power unit	12V DC	12V DC
Hydraulic tank capacity	22 gal	22 gal
Fuel tank capacity	17 gal	17 gal
Weight(3) and Floor Loading(4)
Weight (tires)	16,360 lb	16,050 lb
Tire contact pressure	80 psi	38 psi
Occupied floor pressure (tires)	231 psf	229 psf
Sound and Vibration Levels
Sound Pressure level (ground workstation)	87 dBA	87 dBA
Sound Pressure level (platform workstation)	82 dBA	82 dBA
Vibrations	8 ft 2 in/s²	8 ft 2 in/s²
