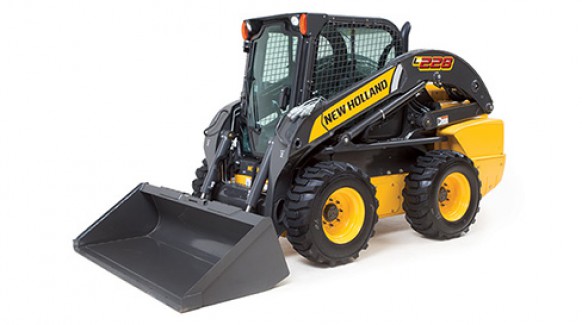

New Holland L228

Skid Steer Loaders L228

Double tap to zoom



Features

Sorry, currently there are no features but check back with us later.

Specifications

Engine


Manufacturer/model FPT /F5H FL463A*F001
Bore/stroke, in (mm) 3.9 x 4.3 (99 x 110)
Displacement, in3 (L) 207 (3.4)
Fuel injection HPCR Direct
Air intake Turbocharged Aftercooled with external CEGR
Horsepower per SAE J1349 Gross hp (kW) 74 (55) @ 2500 rpm
Horsepower per SAE J1349 Net hp (kW) 68 (51) @ 2500 rpm
Peak torque, lb-ft (Nm) 232 (314) @ 1400 rpm



Power Train


Travel speed, low range, mph (km/h) 7.0 (11.3)
Travel speed, high range (optional), mph (km/h) 10.5 (16.9)



Dimensions


Height to
Bucket hinge pin, in (mm) 129.4 (3287)
Top of ROPS, in (mm) 78.8 (2002)
Bottom of level bucket, fully raised, in (mm) 122.6 (3115)
Overall length without attachment with coupler, in (mm) 117.8 (2993)
Dump angle, degrees 54.7
Dump reach (max height), in (mm) 32.3 (821)
Rollback, bucket on ground, degrees 33.8
Rollback, bucket at full height, degrees 84.8
Wheelbase, in (mm) 52 (1322)
Ground clearance (bottom of belly pan), in (mm) 8 (203)
Angle of departure, degrees 23.5
Clearance circle without bucket, in (mm) 56.2 (1428)
Clearance circle rear, in (mm) 70.4 (1789)
Rear axle to bumper, in (mm) 40.7 (1034)
Overall width, in (mm) 69.6 (1768)



Hydraulic System


Pump flow, Standard Flow, gpm (Lpm) 24.2 (91.5)
Relief pressure, psi (bar) 3046 (210)
Optional high flow, gpm (Lpm) 37.6 (142.5)



Performance Specs


Rated operating load, 50% tip, lbs (kg) 2800 (1270)
Tipping load, lbs (kg) 5600 (2540)
Breakout force, lift cylinder, lbs (kN) 6030 (27.3)
Breakout force, bucket cylinder, lbs (kN) 8620 (38.3)
Operating weight, lbs (kg) 8245 (3740)
