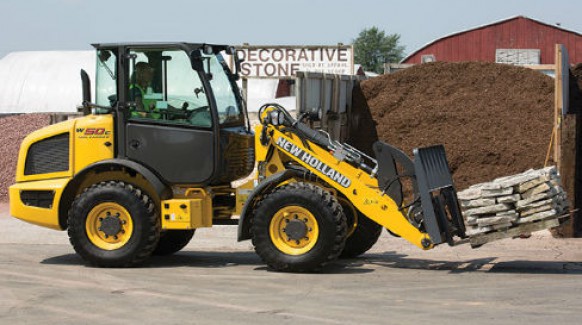

New Holland W50C TC

Compact Wheel Loaders W50C TC

Double tap to zoom



Features


INCREASED STABILITY FOR FASTER, MORE CONFIDENT OPERATION
C Series compact wheel loaders also feature increased stability so you can:
- lift and move larger loads
- enjoy a smoother ride
- operate with more confidence
- travel more smoothly and quickly, even in tough conditions.

SPACIOUS COMFORT AND SMOOTH CONTROL
The brand-new cab design incorporates big comfort, with roomy dimensions and natural, ergonomic controls. Redesigned wide steps give you easier cab entry and exit.    The seat, steering column and armrest adjust to make every operator comfortable.    The standard LCD display puts information within an easy glance.    The high-performance heater/defroster is standard with optional air conditioning for comfort in any season.

LIFT, LOAD, DIG AND SCRAPE MORE EFFICIENTLY
With dependable engine and hydraulic power and a choice of buckets and attachments, New Holland compact wheel loaders do much more than load. They allow you to scrape, grade, push, rake, haul and more.

FAST SERVICING
Fast, ground-level access to maintenance points and long service intervals reduce the time your operators spend on routine maintenance tasks.

Specifications

Model F5HFL463B*F001
Horsepower, gross, hp (kW) 58 (43)
Horsepower, net, hp (kW) 55 (41)
Rated rpm 2500
Torque, net (SAE J1349) 185 (251)
Displacement, cu in (l) 3
Aspiration -
Travel speed, turtle, mph (km/h) 3 (5)
Travel speed, rabbit, mph (km/h) 12 (20)
Travel speed, high speed (option), mph (km/h) N/A
Drivetrain Pump flow @ 2500 rpm, gpm (lpm) 26 (100)
Loader Pump flow @ 2500 rpm, gpm (lpm) 18 (67)
Main relief pressure, psi (bar) 3335 (230)
Bucket capacity heaped, cu yd ( m³) 0.92 (0.7)
Bucket capacity struck, yd (m) 0.7 (0.5)
Breakout force, lbs (kg) 9048 (4104)
Static tip load straight, lbs (kg) 8322 (3775)
Static tip load full turn, lbs (kg) 7194 (3263)
Operating weight, lbs (kg) 10,913 (4950)
Dump height, ft in (mm) 93” (2396)
Dump reach, in (mm) -
Overall length 204” (5219)
Wheelbase 82” (2075)
Height to top of ROPS/Cab 97” (2458)
Dump reach at full height @ 45° 93” (2396)
Bucket reach @ 7’ and 45° dump 37” (948)
Dump clearance at full height @ 45° -
Hinge pin height 121” (3113)
Dig depth below grade 5” (126)
Ground clearance under axle 13” (321)
Width over tires 69” (1740)
Bucket rollback at carry 44°
Bucket rollback fully raised 55°
Turning radius 146” (3721)
Articulation angle, from center 40°
