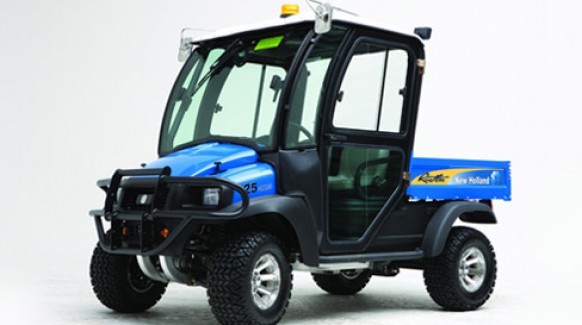

New Holland Rustler 125 UV Gas - 2 or 4-person

Rustler Utility Vehicles Rustler 125 UV Gas - 2 or 4-person

Double tap to zoom



Features

RUSTLER™ 125 An industrial-grade engine puts more capability at your command. Smart design, including a twin barrel, internally heated and vented carburetor; cast-iron cylinder liners; pressurized lubrication, and an automotive-grade starter keep you running at peak performance.

WHAT PERFECTION FEELS LIKE
There's nothing quite like brute force tempered with clockwork precision to turn the ordinary into exhilarating. With an industry-leading CVT transmission, sophisticated drivetrain and all-wheel-drive traction control, the Rustler™ is well equipped to deliver the smoothest ride in its class.

TRANSMISSION
The Rustler CVT transmission performs like a sixth sense, handling even the most rugged terrain with intuitive control. Front and rear auto-locking differentials and a unique roller-type design eliminate the need for operator controls, creating an automobile-like driving experience. And when you're staring down a steep incline, you'll appreciate best-in-class engine braking provided by the CVT clutch.

DRIVETRAIN Standard all-wheel drive on the Rustler 120 and 125 models does the thinking for you. No buttons to push, levers to pull or gears to shift. This is as simple as it gets.

ALL-WHEEL-DRIVE TRACTION CONTROL SYSTEM An industry-leading ground-speed-sensing system on 120 and 125 models delivers intuitive control under the most aggressive driving conditions. By connecting the transmission directly to the front and rear differentials, power and torque are automatically adjusted on all four wheels as required. The effortless system gives you a sure grip on the road for confident cornering and powerful climbing ability

GO ON, GET DIRTY
The Rustler™ was born to play hard. From its durable body panels to its aircraft-grade aluminum frame, you'll have the confidence to handle whatever the workday or weekend throws at you. And with seating for up to four and overall capacity of up to 1,600 pounds, there's room for everyone to get in on the action.

GET BEHIND THE WHEEL AND ON TOP OF THE WORLD
If your land is your domain, then the Rustler™ is your command center. With independent front and rear suspension, superior stopping power, spacious seating and a fully certified ROPS or safety-glass cab, you're free to follow your instincts as far as they take you

Specifications

Model 125 UV Gas - 2 or 4-person
Engine 4 cycle OHV, 675 cc, twin-cylinder, industrial grade
Horsepower (at 3600 RPM) hp (kW) 23 (17.2)
Cooling Air
Fuel tank, gal (l) 6.5 (24.6)
Travel speed, mph (kph) 25 (40.2)
Ignition Electronic
Torque converter Enclosed CVT (Continuously Variable Transmission)
High/Low Range Engagement NA -single speed
4WD engagement Automatic - all-wheel drive
Front differential Automatic - locking on demand
Rear differential Auto locking - all-wheel drive
Electrical System 12-volt, 500 cca
Steering - Std Std Rack & pinion (tilt column)
Steering - optional Power Rack & pinion (tilt column)
Suspension - Front Independent double A-arms w/coil-over shocks
Suspension - Rear Solid axle, Swing arm w/ coil-over shocks
Brakes 4-wheel, hydraulic disc
Park brake Foot-operated enagement, hand operated release
Frame Chassis Tubular rust-proof non-corrosive, aircraft-grade 6061 aluminum
Tires Mud, 25 x 11-12, 4-ply, All Terrain, 25 x 10.5-12, 4-ply
Cargo box size, in (cm) 48 L x 49.8 W x 10.9 H (121.9 x 126.5 x 27.7)
Bed capacity, lb (kg) 2-person- Std. 800 (362.9), High Cap.1050 (476.3), 4-Person- 800 (362.9)
Bed loading Height, in (cm) 34 (86.4)
Total vehicle rated capacity, lb (kg) (Payload, driver, passenger level surface) 2-person- Std. 1200 (544.3), High Cap.- 1450 (657.7), 4-person- 1600 (725.7)
Maximum allowable GVW, lb (kg) 2-person- Std. 2750 (1247), High cap.- 3012 (1366), 4-person- 3350 (1519)
Overall length, in (cm) 2-person- 122 (309), 4-person- 154 (391)
Overall width, in (cm) - w/o mirror 58.5 (148)
Overall width, in (cm) - w/ mirror 63.6 (161.5)
Overall height, in (cm) w/ ROPS 2-person- 82.3 (209), 4-person- 80.3
Wheelbase, in (cm) 2-person- 81.5 (207), 4-person- 114 (289.6)
Wheel track - Front/Rear; in (cm) 48.8 (124)
Ground clearance, in (cm) 8.2 (20.8) - differential
Floor ground clearance. in (cm) 12.1 (30.7)
Dry weight (less batteries), lb (kg) 2-person- 1450 (657), 4-person- 1630 (739)
Turning radius, ft (cm) 2-person- 11.5 (350), 4-person- 17 (518)
Vehicle warranty 2-year/2,000-hour, limited
