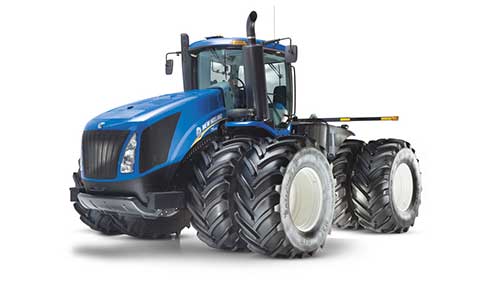

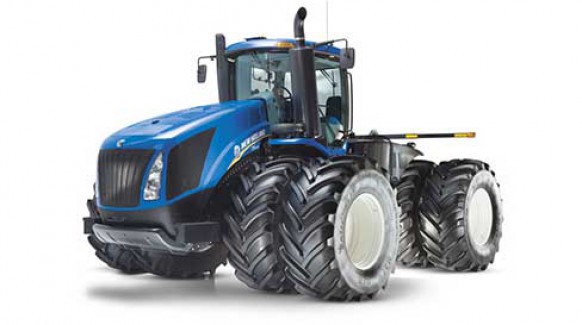

New Holland T9.615

T9 Series 4WD – Tier 4A T9.615

Double tap to zoom



Features

MORE POWER AND PRODUCTIVITY

T9 4WD tractor engines utilize EcoBlue™—New Holland’s Tier 4 engine solution.



ABSOLUTE DRIVING PLEASURE

New Holland puts the operator right at the heart of the tractor.



MAXIMUM VERSATILITY

New Holland T9 tractors come in two chassis sizes.



LOWER OPERATING COSTS

A sound investment delivers the best returns.

Specifications

Model T9.615
Engine

Type

New Holland FPT Cursor 13L

Aspiration

Two Stage Turbocharged, air-to-air after cooled

Displacement, CID (L)

787 (12.9)

Engine horsepower, DIN hp (kw)

542 (399)

PTO hp (SAE)

473

Power growth at 1800 rpm, hp (kw)

71 (52)

Max Power - EPM hp [CV] (kw)

613 (451)

Torque rise

40%

Peak engine torque at 1400 rpm, lb.-ft. (Nm)

1926 (2611)

Bore & stroke, in. (mm)

5.3 x 5.9 (135 x 150)

Rated engine speed

2100

Engine idle speed

875
Electrical

Type..

12-volt negative ground

Starting system

24-volt starting circuit

Alternator

200 amp output

Batteries

Two, 1000 CCA
Transmissions

Standard

16 x 2 Powershift with transport mode
Axles

Final drive std.

Compound Inboard 3-planetary

Bar diameter, in. (mm)

4.5 (115)

Heavy-duty version

n/a

HD Bar diameter, in. (mm)

n/a

Differential lock option

Yes
Hydraulics

Type.

CCLS

Remote valves, standard

4

Optional remote valves**

up to 8

Standard hydraulic pump capacity, gpm (L/min.)

42 (159)

Optional hydraulic pump capacity, gpm (L/min.)

57 (216)

Optional MegaFlow™ pump capacity, gpm (L/min.)

98 (371) or 113 (428)

Rated flow at one remote @ 2000 psi, gpm (L/min.)

45 (170)
3-Point Hitch***

Type…

3-point Cat. IV-N

Lift capacity @ 24 in. (610 mm), lb. (kg)

19,620 (8900)
PTO***

Optional

1000 rpm
Brakes

Standard on front and rear axle

Integral hydraulic wet disk
Capacities

Fuel tanks, gal. (L)

324 (1224)

HD Fuel tanks, gal. (L)

n/a

DEF tank, gal. (L)

62 (234)

Engine oil with filter, U.S. gal. (L)

13 (49)

Coolant system, U.S. gal. (L)

21.1 (79.8)
Dimensions

Maximum height (with 20.8 R 42 tires), in. (mm)

148.5 (3772)

Maximum overall length, in. (mm)

300 (7615)

Outside frame width, in. (mm)

44 (1116)

Wheelbase, in. (mm)

154 (3911)

Frame articulation

38° left/right

Frame oscillation

13° (26° total)

Centerline turn radius, ft. (m)

18.8 (5.7)
Center-Pull Drawbar

Static vertical load rating, lb. (kg)

Std. 5,300 (2404) Opt. 11,000 (4989)
Maximum Operating Weight

T9 Series, lbs. (kg)

56,000 (24,494)
Shipping Weight

Standard FWD, lbs. (kg)**

37,509 (17,014)
