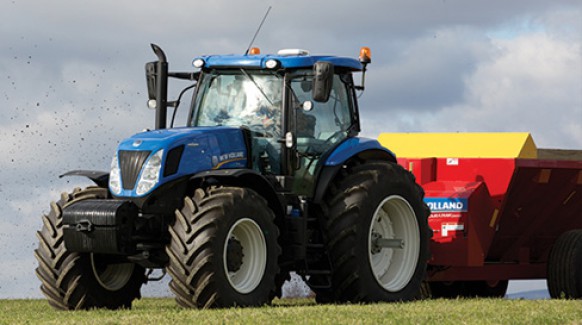

New Holland T7.175 SideWinder II

T7 Series-Tier 4B T7.175 SideWinder II

Double tap to zoom



Features

CLEANER, MORE PRODUCTIVE POWER

T7 tractors boast New Holland's cutting-edge and award-winning ECOBlue™ HI-eSCR (High-Efficiency Selective Catalytic Reduction) engine technology for Tier 4B emissions compliance, with absolutely no change in operation.



EXCEPTIONAL VISIBILITY AND DRIVING EASE

New best in class lighting packages, upgraded seat options, Comfort Ride™ cab suspension and innovative easy-to-use controls improve operator comfort and productivity.



REDUCE YOUR OPERATING COST

The ECOBlue™ HI-eSCR technology further reduces engine emissions and also maintains the low fuel consumption that you've come to expect from New Holland.



EVEN MORE VERSATILITY

The nine-model T7 Series line-up provides a choice of engine power, hydraulic options and transmission choices for every application.



Specifications

Model T7.175 SideWinder II
New Holland Engine* Nef
No. of cylinders / Aspiration / Valves / Emission level 6/ T / 4 / Tier 4B
Selective Catalytic Reduction (SCR) system Standard
Fuel system - high pressure common rail Standard
Max. EPM horsepower - ISO TR14396- ECE R120 [hp[CV] (kw)] 175 (128)
Rated engine horsepower - ISO TR14396- ECE R120 [hp[CV] (kw)] 140 (103)
PTO horsepower (kw) 110 (82)
Rated engine speed (rpm) 2200
Viscous coupled cooling fan Standard
Reversible fan Optional
Exhaust brake Optional
Diesel tank capacity [gal (Liters)] 87 (330)
DEF/AdBlue® tank capacity [gal (Liters)] 13 (48)
Power Command™ Transmission
Power Command™ full-powershift (40 kph) Optional
Number of gears / with creeper (F x R) 18 x 6 / 28 x 12
Min. speed / Min. speed with creeper mph (kph) 1.2 / 0.2 (1.9 / 0.31)
Power Command™ full powershift (40 kph ECO or 50 kph) Optional
Number of gears / with creeper (F x R) 19 x 6 / 29 x 12
Min. speed / Min. speed with creeper mph (kph) 1.2 / 0.2 (1.9 / 0.31)
Auto Command™ Transmission
Auto Command™ continuously variable transmission (40 kph ECO) Standard
Min. speed / Max. speed (mph) 0.01 / 25 @ 1550 rpm
Auto Command™ continuously variable transmission (50 kph ECO) Optional
Min. speed / Max. speed (mph) 0.01 / 31 @ 1700 rpm
Hydraulics
Closed Center Load Sensing (CCLS) Standard
Main pump flow Standard / MegaFlow™ option*** gpm (Lpm) - (Range & Power Command) 29.8 (113)
Main pump flow Standard / MegaFlow™ option (Auto Command) 37/42 (140/160)
Electronic Draft Control (EDC) Standard
Remote Valves
Type Electro hydraulic
Max. no. rear valves 5
Joystick control Optional
Max. no. mid mount valves 3
Front loader ready Optional
Rear Linkage Standard
Front Linkage Optional
PTO
Auto soft start Standard
Engine speed at 540 / 1000 (rpm) 1969 / 1924
Engine speed at 540E / 1000 (rpm) Not available
Engine speed at 1000 / 1000E (rpm) Not available
540 / 540E / 1000 / 1000E shiftable Not available
Auto PTO management Standard
Front PTO (1000rpm) Optional
Cab
Comfort Ride™ cab suspension Standard
Headland Turn Sequence II System (HTS2) Standard
IntelliView™ IV large screen 10.4" display Standard
ISO 11783 connector Standard
IntelliSteer™ auto guidance Optional
Axles
4WD front axle Standard
Suspended front axle Optional
Supersteer™ front axle Optional
Steering angle standard / Terraglide™ / SuperSteer™ axle (°) 55/55/65
Bar rear axle Optional
Wheelbase
Standard front axle 107.6 (2734)
Suspended front axle 109.8 (2789)
Supersteer™ front axle 113.3 (2880)
Weights
Minimum unballasted / shipping weight - Standard front axle lbs (kg) 12,677 / 12,787 (5750 / 5800)
Minimum unballasted / shipping weight - Terraglide™ suspended front axle lbs (kg) 13,338 / 13,448 (6050 / 6100)
Minimum unballasted / shipping weight - SuperSteer™ front axle lbs (kg) 13,294 / 13,404 (6030 / 6080)
Max. permissible weight at 50 kph lbs (kg) 24,251 (11000)
