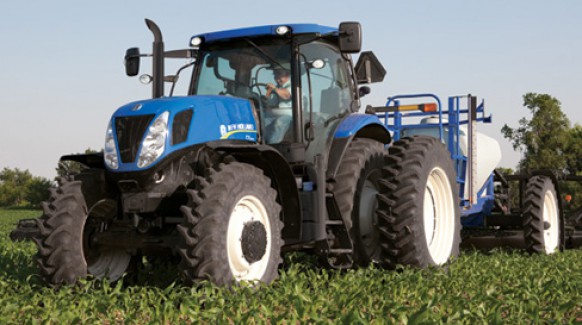

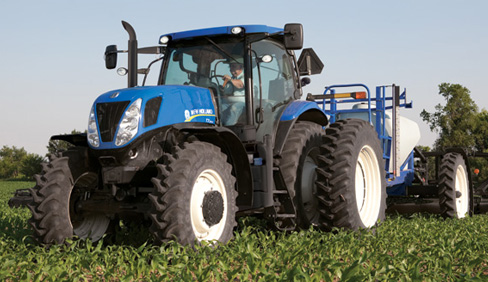

New Holland T7.170

Double tap to zoom



Features

MORE PRODUCTIVITY AND POWER

T7 tractors boast New Holland's cutting-edge ECOBlue™ SCR (Selective Catalytic Reduction) engine technology for Tier 4A emissions compliance.



ABSOLUTE DRIVING PLEASURE

T7 Series tractors make operation easy—almost second nature.



LOWER OPERATING COSTS

The ECOBlue technology that reduces engine emissions also reduces fuel consumption to save you money



MAXIMUM VERSATILITY

The nine-model T7 Series line-up provides a choice of engine power, hydraulic options and transmission choices for every application.



Specifications

Model

T7.170
Engine

Emission Level

Tier 4a

Rated PTO HP

100

Engine HP

125

Rated Speed (RPM)

2200

Torque Rise (%)

53

Power Boost (hp)

55

Cylinders/Displacement

6 / 411 cu. In. (6.75L)

Number of valves

24

Aspiration

Turbocharged / Intercooled

Alternator - Standard / Optional (amps)

150 / 200

Battery Capacity (cca)

1300

Diesel tank capacity

87 gal (330L)

DEF/AdBlue® tank capacity

13 gal (48L)

Service Interval

600 hours
Transmission

Power Commmand™ 18x6 Full Powershift (25mph).

na

Power Commmand™ 19x6 Full Powershift Econ (25mph)

na

Power Commmand™ 19x6 Full Powershift (30mph)

na

AutoCommmand™ CVT Economy (25mph)

 Standard

AutoCommmand™ CVT (31mph)

 Optional
PTO & Hitch

Standard

Independent 540/1000 RPM w/ Dual Shafts

Optional

na

3-Point Hitch Category

II Flex Link Ends

3-Point system

Electronic Draft Control

Lift Capacity (lbs / Kg)

12185 / 5527
Front Axle

Heavy Duty FWD axle w/ TerraLock™

 Standard

TerraGlide™ Suspended FWD axle w/ TerraLock™

 Optional

SuperSteer™ FWD axle w/ TerraLock™

 Optional
Rear Axle

Flange

 Standard

98 in. (2489mm) Bar

 Optional

112 in. (2485mm) Bar

 Optional

119 in. (3023mm) Bar

na
Hydraulics

Hydraulic Type

CCLS

Rear Remote Standard

3 electro-hydraulic w/ paddle or joystick control

Implement Pump Flow STD

29.9 gpm /113 lpm at 1800 Engine RPM -- 33 gpm / 125 lpm at 2200 Engine RPM

Implement Pump Flow OPT

30 gpm /115 lpm at 1800 Engine RPM -- 37 gpm / 140 lpm at 2200 Engine RPM

Steering Pump Flow

14.8 gpm / 56 lpm
Cab Features

SideWinder™ II Armrest

 Standard

CommandGrip™ Multi-Controller

 Standard

Intuitive Command Console

 Standard

IntelliView™ III Touchscreen Display

 Standard

Deluxe Air Ride Seat

 Standard

Programmable Shuttle

 Standard

Seat Mounted Joystick

 Optional

High-Visibility Roof Panel

 Optional

Sound Level

70 Dba

Glass area Including Hi-Visibility Panel

63 sq.ft (5.85 sq m)
Dimensions

Minimum Shipping Weight

12,786 lbs / 5800 Kg

Height to top of cab, 18.4 R42 Tires

120 in.

Height to top of exhaust, 18.4 R42 Tires

121.2 in.
