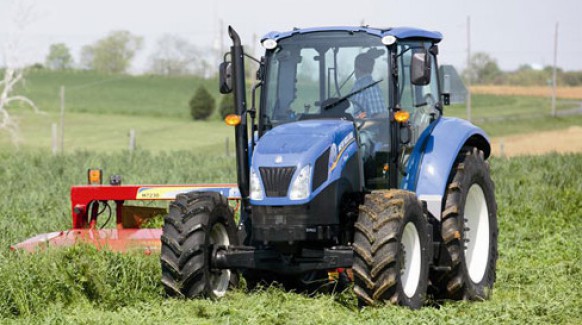

New Holland T5.95

T5 Series - Tier 4A T5.95

Double tap to zoom



Features

YOUR SECOND OFFICE: NOW IN THE FIELD

T5 tractors will be used in a wide variety of applications, so we made sure customers like you can get the versatility you need.

T5: SYNONYMOUS WITH “EASE”

Comfort and at ease is what you'll feel in the cab of a T5.

FOCUS ON FARMING, NOT YOUR WALLET

Your success depends on spending more time working and less time maintaining your tractor, so the T5 is designed to keep you moving in the fields and not down the road for parts.

POWERFULLY PRODUCTIVE

The F5D engine benefits from a Cooled Exhaust Gas Recirculation (CEGR) system with a Diesel Particulate Filter (DPF) for Tier 4A emission compliance.

Specifications

Model

T5.95
Engine

Make

FPT F5D

Type

4-cylinder diesel

Displacement, cu. in. (L)

207 (3.4)

Gross engine horsepower

98

PTO horsepower

82

Emissions

Tier 4A with Cooled Exhaust Gas Recirculation (CEGR) and a Diesel Particulate Filter (DPF)
Transmissions

Standard

12x12 Power Shuttle

Option 1

20x20 Power Shuttle with creeper

Option 2

24x24 Dual Command™ Power Shuttle
3-Point Hitch

Lift capacity at 24", lbs. (kg)

6,393 (2900)

1 Optional ram at 24", lbs. (kg)

N/A

2 Optional ram at 24", lbs. (kg)

10,452 (4741)

Front hitch lift capacity at 24", lbs. (kg)

3,968 (1800)
Hydraulics

Rear remotes - base/optional

2 / 3

Main pump flow, gpm (L/min)

16.1 (61)

Optional main pump flow, gpm (L/min)

21.1 (80)

Steering and services pump, gpm (L/min)

10.0 (38)

Opt. steering and services pump, gpm (L/min)

11.4 (43)
PTO

Base PTO (RPM)

540/1000

Front PTO speeds (RPM)

1000
Dimensions

Weight [lbs. (kg)]

9,370 (4250)

Overall width, in. (mm)

82.6 (2098)

Overall height, in. (mm)

105.4 (2677)

Overall length, in. (mm)

163.8 (4161)

Wheelbase, in. (mm)

92.5 (2350)
