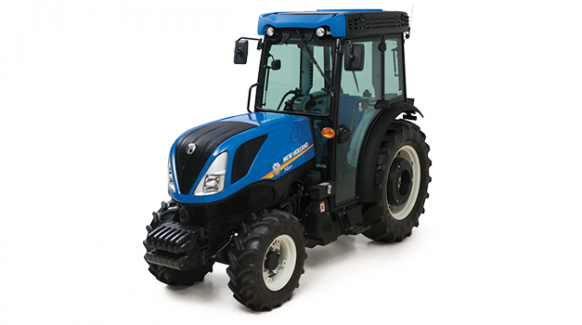

New Holland T4.80V

T4V Vineyard Series - Tier 4A T4.80V

Double tap to zoom



Features

AS NARROW AS 43.1 INCHES

With a width as narrow as 43.1 inches (depending on tire size), the T4V tractor fits in the tightest rows.

TIER 4A CERTIFIED

You get clean power from engines that are Tier 4A emissions certified, and range from 65 to 93 PTO horsepower.

NEW BLUE CAB™ 4

T4V tractors are now available with Level 4 protection from dust, aerosols and vapors.

FROM THE WORLD LEADER

New Holland is the world’s leading supplier of narrow tractors so you know you are getting the advantages of the very best.

Specifications

Model T4.80V
Power
Engine HP 74
PTO HP 65
Operator's platform Cab or ROPS
Front Axle 2WD or 4WD
Transmission Offering
Mechanical shuttle 16x16
Power shuttle 16x16 or 32x16
Three-point Hitch
Lift capacity @ 24" lbs. (kg) 4,400 (1996)
Hydraulics
Rear remotes 2 / 3 / 3 with Diverter
Steering & service gpm (L/Min) 9.2 (35)
Implement pump gpm (L/Min) 16.9 (76.8)
Opt. Implement pump (cab) gpm (L/Min) 21.1 (80)
Weights & Dimensions (4WD ROPS)
Weight lbs. (kg) 5,661 (2568)
Overall length in. (mm) 148.8 (3779)
Min. Height to Cab in. (mm) 91.9 (2336)
Min. Overall width in. (mm) 43.1 (1094)
Min. Height to hood in. (mm) 53.1 (1349)
Weights & Dimensions (4WD Cab)
Weight lbs. (kg) 5,974 (2710)
Overall length in. (mm) 148.8 (3779)
Min. Height to Cab in. (mm) 94.5 (2400)
Min. Overall width in. (mm) 43.1 (1094)
Min. Height to hood in. (mm) 53.1 (1349)
PTO
Base PTO 540/540E
Optional 540/1000
