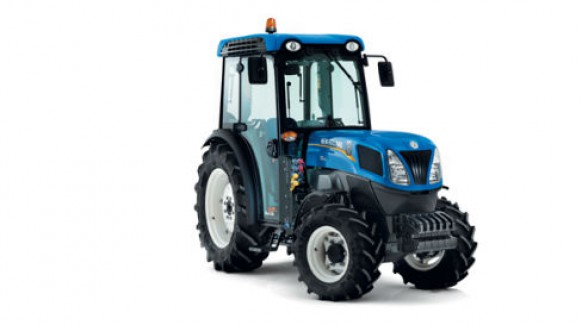

New Holland T4.105V

Double tap to zoom



Features

DON'T LET A SLIM DESIGN FOOL YOU The narrowest tractors on the market pack a punch. Four-cylinder, 195-cu. in. engines on the T4.75V and T4.85V, and a 275-cu. in. engine on the T4.95V and T4.105V deliver smooth, responsive performance with a torque rise up to 39% for excellent lugging power in the most demanding conditions.

MORE CHOICES FOR PRECISE CONTROL T4V transmissions put you in control with quiet, high-precision helical cut gears, the convenience of left-hand, in-line forward/reverse shuttling and your choice of three smooth gear configurations.

BIG CAPACITY, FAST RESPONSE Put more flow behind your operation with two hydraulic gear pumps in two separate open center hydraulic circuits. A beefy three-point hitch capacity and flexible valves let you handle more demanding implements and maneuver with precision and ease.

COMFORT IN CLOSE QUARTERS Climb on board and it’s easy to see that the slimmest tractors on the market don’t scrimp on operator comfort. Choice of open-design operator platform or quiet, all-weather cab keeps you comfortable and productive in a package that’s less than four feet wide.

CUT DOWNTIME WITH SIMPLE MAINTENANCE Easy access to checkpoints makes routine maintenance a simple one-person task, so you get back on the job fast.

Specifications

Model

 T4.105V
Engine

Type

4-cycle, diesel

Make

New Holland

Model

NEF

Cylinders / Aspiration

4 / Turbocharged and Intercooled

Displacement, cu. in. (L)

275 (4.5)

Block Type

Parent Bore

Rated Speed, RPM

2300

Gross Engine Horsepower

105

PTO Horsepower

92

Torque Rise†

31%

Maximum Torque, lb.-ft. (Nm)†

313 (425) @ 1300 rpm

Emission Legislation

Tier III
Fuel, Air and Lubrication System

Injection Pump

Bosch VE, Rotary

Injector Type

Direct

Fuel Filter Type

Dual stage fuel filtering system with water/sediment separator followed by a paper filter element cartridge

Fuel Tank Capacity, gal. (L)

19.5 (74)

Air Filter Type

Dry, Dual Element

Service Interval††

600 hours

Muffler

Under hood

Exhaust Outlet

Under right side of operator's station
Transmission

Transmissions

Base: 16x16 with a Mechanical Shuttle

.

Option 1: 16x16 with a Power Shuttle

..

Option 2: 32x16 with a Power Shuttle

Clutch Type / Size (Mechanical), in. (mm)

Dry, 11 (280) diameter, heavy-duty cerametallic material

Clutch Type / Size (Electro-hydraulic), in. (mm)

Wet, 7 plates 5.2 (133), organic material

Top Speed

24 MPH
Front Axle

2WD Front Axle: Steering Angle, degrees

NA

FWD Front Axle: Front Differential Lock

Fully locking, electro-hydraulic engaged

Steering Angle, degrees.

55
Electrical

Battery, volts/cca

12/800

Alternator, amps

120

Cold Start Aid

Grid Heater
Hydraulic System

System Type

Open Center

System Pressure, psi. (bar)

2755 (190)

Implement Pump Flow, gpm. (L/Min): Base - Mechanical Shuttle

12.8 (48)

Implement Pump Flow, gpm. (L/Min): Base - Power Shuttle

17.2 (65)

Steering & Services Pump, gpm. (L/Min): Mechanical Shuttle -

7.3 (28.0)

Steering & Services Pump, gpm. (L/Min): Power Shuttle

9.4 (35.6)

Remotes Valves

2 (Base), 3 (Optional, includes flow control)

Draft Control

Mechanical

Upper / Lower Limit Setting

Lift-O-Matic

3-Pt Hitch Lift Capacity (24” behind lift point), lbs. (kg)

4497 (2040)

Front Lift and PTO

NA
Rear PTO

540/1000 RPM

 Optional

Engagement

Mechanical with Hydraulic Servo-Assist
Turning Performance

Turning Radius: 2WD – without Brakes, ft. (m)

NA / NA

Turning Radius: FWD – without Brakes, ft. (m)

11.2 (3.4)
Approximate Weights

2WD Less Cab, lbs. (kg)

5306 (2407)

2WD Cab, lbs. (kg)

5579 (2531)

FWD Less Cab, lbs. (kg)

5877 (2666)

FWD Cab, lbs. (kg)

6150 (2790)
Dimensions

Platform Type – Cab / Rollbar

Iso mounted, straddle platform

Wheelbase: 2WD, in. (mm)

85.3 (2166)

Wheelbase: FWD, in. (mm)

85.8 (2180)

Tire Track Widths: Front 2WD, in. (mm)

34.0 (864) – 42.4 (1076)

Tire Track Widths: Front FWD, in. (mm)

34.3 (871) – 41.3 (1049)

Rear, in. (mm)

31.1 (791) – 49.6 (1261)

Min. Overall Width,** in. (mm)

43.1 (1095)

Height to Top of Rollbar,*** in. (mm)

92.0 (2337)

Height to Top of Dash, *** in. (mm)

50.8 (1290)

Height to Top of Cab, *** in. (mm)

84.6 (2148)
