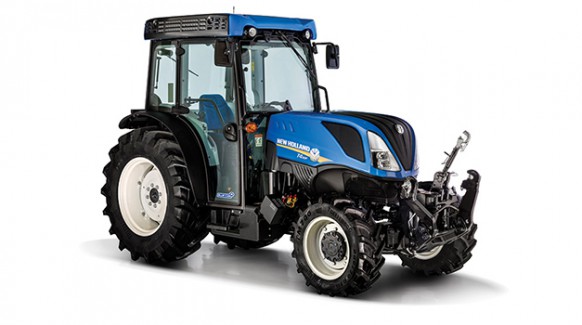

New Holland T4.100F

T4F Narrow Series - Tier 4A T4.100F

Double tap to zoom



Features

UP TO 93 PTO HP IN NARROW ROWS

The T4F Series continues the legacy of being the most stable, narrow platform for tough applications.

CLEAN POWER

Powerful, 207-cubic-inch, four-cylinder engines are Tier 4A emissions compliant to reduce emissions.

NEW BLUE CAB™ 4

T4F tractors are now available with Level 4 protection from dust, aerosols and vapors.

A HITCH ON FRONT AND BACK

For added versatility, add the available front three-point hitch with available front PTO.

Specifications

Power T4.100F
Engine HP 98
PTO HP 86
Operator’s platform Cab or ROPS
Front Axle 4WD
Transmission Offering
Mechanical Shuttle 16x16
Power Shuttle 16x16 or 32x16
Three-point Hitch
Lift capacity @ 24” lbs. (kg) 4,045 (1835)
Hydraulics
Rear remotes 2 / 3 / 3 with Diverter
Steering & service gpm (L/Min) 9.2 (35)
Implement pump gpm (L/Min) 16.9 (76.8)
Opt. Implement pump (cab) gpm (L/Min) 21.1 (80)
Weights & Dimensions (4WD ROPS)
Weight lbs. (kg) 6,420 (2912)
Overall length in. (mm) 148.8 (3779)
Min. Height to ROPS in. (mm) 89.6 (2275)
Min. Overall width in. (mm) 61.7 (1569)
Min. Height to hood in. (mm) 54.1 (1374)
Weights & Dimensions (4WD Cab)
Weight lbs. (kg) 6,614 (3000)
Overall length in. (mm) 159 (4035)
Min. Height to Cab in. (mm) 95.5 (2425)
Min. Overall width in. (mm) 61.7 (1569)
Min. Height to hood in. (mm) 54.1 (1374)
PTO
Base PTO 540/540E
Optional 1 540/1000
