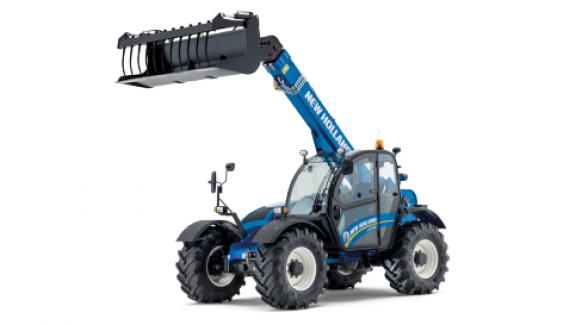

New Holland LM9.35

Full-Size Telehandlers LM9.35

Double tap to zoom



Features

HANDLES TOUGH CHALLENGES.
Three New Holland large-frame telehandlers have the reach to pick up, transport and stack large bales and dozens of other applications. See which model is best for you.

A SPECIFICATION TO SUIT YOUR NEEDS
New Holland offers two LM Series large-frame standard-configuration models--the LM6.32 and LM9.35. Powered by Tier4A 4.5-liter NEF engines, with a maximum power output of 121 horsepower, these telehandlers feature a 4F/3R (four forward and three reverse speed) powershift transmission. Gear selection is on the joystick, while a column-mounted power shuttle lever allows you to make convenient direction changes. A 31.7-gpm hydraulic gear pump and three-mode steering system add to the high level of performance offered. A limited slip differential is standard for the front axle. Transport speed is 25 mph. Designed for applications including material handling, yard work and stacking large bales, these affordable telehandlers are the ideal choice for broad-acre, mixed farm and contract applications.

ELITE POWER DELIVERS OPTIMUM PERFORMANCE
The LM7.42 Elite has a maximum power output of 143 horsepower. The 6F/3R powershift transmission offers automatic speed selection for speeds 4, 5 and 6, and a forward/reverse power shuttle using the main joystick. The three-mode steering system features automatic alignment. Based around a variable-displacement piston pump, the 36.9-gpm hydraulic system is operated via an armrest-mounted joystick. Offering precise proportional control with lightning-fast response, the hydraulic system makes Elite models the optimum choice for the most demanding operators. A high power-to-weight ratio enables these machines to carry out demanding tasks such as heavy material handling. A limited-slip differential is standard on both front and rear axles. With automated gearshifts and speeds up to 25 mph. Elite telehandlers are also well suited for fast transport. These combined features make Elite telehandlers the default choice for demanding farm and contract operators, since their high power enables them to deliver exceptional performance in the most demanding applications.

Engines

CLEAN PERFORMANCE, RESPONSIVE PRODUCTIVITY.

Large-frame LM telehandlers are powered by Tier 4A NEF 4.5 liter, four-cylinder engines. Proven in the New Holland T6 tractor models, these exceptionally clean-running engines have a long 600-hour service interval and a proven dependability record. Rated power outputs are 110 hp for the LM6.32 and LM9.35, and 129 hp for the LM7.42 Elite. These figures climb to 121 hp and 143 hp as engine speed drops to 1,800 rpm (1,900 rpm for LM7.42 Elite). Maximum output for the predecessor LM5000 models was 120 hp. To minimize power loss, the engine flywheel connects directly to the transmission via a heavy-duty 11-inch (280mm) torque converter, a transfer box directing power to the front and rear axles. All three models achieve a maximum 25-mph transport speed and transport mode is automatically engaged in third gear or at speeds exceeding 7.5 mph. This locks the rear steering wheels in the straight-ahead position, allowing steering from the front axle only.

UP TO 10% FUEL SAVINGS
When compared to previous LM5000 telehandler models, the latest ECOBlue™ SCR (Selective Catalytic Reduction) Tier 4A-compliant power units are not only quieter and more powerful, but they are also up to 10% more fuel efficient.

REVERSING FANS KEEP EVERYTHING COOL
Choose the optional reversing fan and every six minutes the engine and cooling package fan reverses direction for 15 seconds. This helps blow dust and contaminants from the engine radiator, oil cooler and intercooler and also helps keep the external engine hood screens free of debris. Working to the same cycle, two separate electrical fans reverse to clean the air conditioning, fuel cooler and transmission radiators.

Transmissions
SMOOTH, EASY OPERATION

LM6.32 & LM9.35 TRANSMISSION KEEPS IT SIMPLE
A full powershift 4F/3R (four-forward and three-reverse speed) transmission is standard on the LM6.32 and LM9.35, with clutch-free changes between each gear. Simply choose speeds using buttons on the console-mounted joystick, and make direction changes with the forward-reverse shuttle lever on the steering column.

LM7.42 ELITE OFFERS AUTO FEATURES
The LM7.42 Elite features a powershift 6F/3R transmission with the ability to select Auto mode. Effective in speeds 4, 5 and 6, Auto mode selects the most appropriate gear in relation to engine and forward speed and is well suited for transport duties. You make gear and direction changes using the buttons on the armrest-mounted joystick.

Specifications

Model LM9.35
Max. lift capacity lbs. (kg) 7,716 (3500)
Max. lift height ft. (m) 29.8 (9.1))
Engine
Type. 4 Cylinders - NEF Tier 4A Common Rail
ECOBlue™ SCR system
(Selective Catalytic Reduction)
Standard
Aspiration Turbo intercooler
Displacement cu. in. (L) 274 (4.5)
Approved Biodiesel blend B20**
Max. power ISO14396 -
ECE R120 @ rpm hp (kW)
121 (89) @ 1800
Rated power ISO14396 -
ECE R120 @ rpm hp (kW
110 (81) @ 2200
Max. torque ISO14396 -
ECE R120 @ rpm ft. lbs. (Nm)
367 (498) @ 1500
Transmission
Type PowerShift™
Speed 4x3
Transmission shifting Incorporated on Joystick
F-N-R Integrated on Joystick -
F-N-R Lever on Steering column Standard
Travel speed mph (kph) 25 (40)
Service Brakes
Actuation Hydraulic power assisted
All four wheels Standard
Type.. Oil immersed discs
Discs per axle 6 Front axle - 4 Rear axle
Parking Brake
Actuation. Front axle SAHR (Spring Actuated Hydraulic Release)
Type… Oil immersed discs
Axles
Limited Slip differential Front Axle Standard
Limited Slip differential Rear Axle -
Capacities
Hydraulic oil tank gal. (L) 27.7 (105)
Fuel tank / AdBlue tank gal. (L) 36.9 (140) / 7.1 (27)
Engine oil gal. (L) 3.2 (12)
Hydraulic
Gear pump gpm (l/min) 31.7 (120)
Variable pump gpm (l/min) -
Boom Controls
Lift Pilot
Tilt Pilot
Extension Electro Proportional
Headstock Auxiliary Electro Hydraulic
Hydraulic cycle times (unloaded)
Lift / Lower (seconds) 7.4 / 5.6
Extend / Retract (seconds) 8.3 / 6.3
Bucket Dump / Bucket Crowd (seconds) 3.1 / 3.4
Cab
Max noise level (dB(A)) 75
Vision (°) 360
Ventilation Heater / Blower / Air Conditioning
Tiltable steering column Standard
Tiltable and telescopic steering column -
Single lever Joystick Cab Mounted
Steering mode options 2WS / 4WS / Crab
Steering mode selection
Manual selection with
Front & Rear pilot lights
Standard
Manual selection with
automatic alignment
-
Wheels & Tires
Standard 460 / 70 R24
Optional -
Dimensions & weight
Wheel Base in. (mm) 118 (3000)
Axle to carrier in. (mm) 50.5 (1285)
Length carrier to counter weight in. (mm) 210.2 (5340)
Length front tire to counter weight in. (mm) 175.2 (4450)
Overall length in. (mm) 262.7 (6672)
Wheel track in. (mm) 73.7 (1873)
Ground Clearance in. (mm) 16.3 (415)
Clearance under step in. (mm) 21.7 (550)
Cab width in. (mm) 40.2 (1020)
Cab height in. (mm) 96.3 (2447)
Overall width (outside tires) in. (mm) 95.7 (2340)
Attachment roll back angle (°) 19
Attachment dump angle (°) 109
Total rotation angle (X+Y) (°) 131
Turning radius over tires in. (mm) 153.6 (3900)
Total weight with forks,
full fuel tank and driver lbs. (kg)
18,916 (8580)
