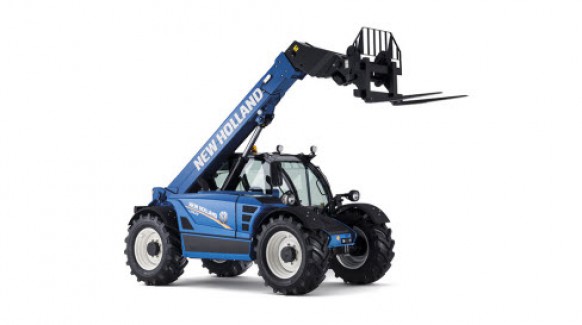

New Holland LM6.28

Compact Telehandlers LM6.28

Double tap to zoom



Features

SMALL IN SIZE, BIG IN PERFORMANCE

The new LM Series compact telehandlers work well in tight spaces and enable you to get the job done in hard-to-reach areas. The 75-hp LM5.25 and 101-hp LM6.28 measure just 70.8 and 79.2 inches wide respectively. With a turn radius as small as 11.2 feet, these compact handlers can operate in tight spaces. Heights of just 78 and 79.2 inches enable either machine to work in low buildings such as poultry houses. But do not think compact dimensions mean limited capacity. The LM5.25 and LM6.28 have maximum capacities of 5,512 and 6,172 pounds, and maximum lift heights of 18.9 and 20.8 feet respectively. This combination of maneuverability and performance makes these telehandlers more versatile than a tractor with a loader, and more efficient than a larger skid steer loader, ideally suited for mixed farming.

RESPONSIVE POWER.

The 75-horsepower LM5.25 should not be taken lightly since it combines a narrow working width of 70.8 inches with a lift capacity of 5,512 lbs. (2,500 kg) and a lift height of 18.9 feet. The LM6.28 incorporates more stability and power with a working width of 79.2 inches and a 101-hp engine. With a 20.8-foot boom and a lift capacity of 6,172 pounds, the LM6.28 is able to handle all your jobs in those confined spaces.

BUILT TO LAST

Manufactured to exacting quality standards, New Holland compact telehandlers are really simple to look after. You can complete daily checks within a few minutes and, when a service is required, the thoughtful design makes access to filters and key components simple.

SPACIOUS CAB. 360° VISIBILITY

A spacious cab – larger than most competitive compact models – contradicts the compact size of these machines. With 12.3 square feet of glass on the LM5.25 and 13.4 square feet of glass on the LM6.28, 360-degree visibility comes as standard equipment. The standard air conditioning system has a large condenser that provides high levels of air flow through the five position-controlled air vents to ensure whole-body climate control in all temperatures. In order to provide additional visibility in low light conditions, a work light package including front, rear and boom lights is available on the LM5.25 and comes as standard equipment.

A WIDE RANGE OF ATTACHMENTS FOR MORE VERSATILITY A wide range of attachments is available to fit the skid-steer-style attachment of the LM5.25 or the Manitou-style attachment of the LM6.28, including:

  • Buckets for heavy digging or moving high volumes of loose material
  • Hay handling grabs, spears, forks and grapples for bales of any size and shape
  • Pallet forks for handling palletized materials
  • Many other specialized skid steer or Manitou-style attachments

Specifications

Model LLM6.28
Max. lift capacity
Max. lift capacity lbs. (kg) 20.8 (6.35)
Max. lift height
Max. lift height ft. (m) 18.9 (5.78)
Boom suspension
Smooth Ride Control
- boom suspension
Optional
Engine
Type. 4 Cylinder Tier 4 Common Rail
Displacement cu.in. (L) 268 (4.4)
Aspiration Turbo
Max. power ISO14396 -
ECE R120 @ rpm hp (kW)
101 (74.5) @ 2200
Max. torque ISO14396 -
ECE R120 @ rpm ft. lbs. (Nm)
247 (335) @ 1500
Cold climate start device Standard
Transmission
Variable capacity hydrostatic Hydro 2 speed
Service Brakes
Actuation Hydraulic power assisted
Type Oil immersed discs
Discs per axle 6
Axles
Differential lock Front
Capacities
Hydraulic oil gal. (L) (Litres) 37.0 (140)
Fuel gal. (L) (Litres) 26.4 (100)
Hydraulics
Gear pump gpm (l/min) 29.1 (110)
Hydraulic controls Proportional
Joystick with Proportional
Controls
Standard
Joystick with Proportional
and flow sharing controls
Optional
Joystick with Proportional
and F-N-R integrated controls
Optional
Cab
Max noise level (dB(A)) 80
Vision (°) 360
Adjustable steering column Standard
Power steering 2WS / 4WS / Crab
Rotating beacon Standard
Mechanical seat -
Deluxe seat with
pneumatic suspension
Standard
Heater Standard
Air conditioning Standard
Two cab pilot lights for
steering alignment (LM6.28 only)
Standard
Sun visor (LM5.25 only) -
Cab comfort kit - sun visor,
oddments holder, phone holder
, inclinometer
Standard
Reverse alarm Standard
Lighting
Front work lights on top of cab x 2 Standard
Rear work lights on top of cab x 2 Standard
Boom work lights Standard
Wheels & Tires
Standard 400 / 70x20
Optional 405 / 70x24
