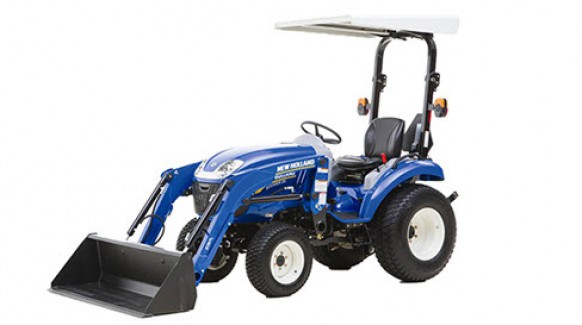

New Holland Boomer 24

Boomer Series 24 HP Boomer 24

Double tap to zoom



Features

MORE POWER WORKING FOR YOU

For dependability you can count on, Boomer™ 24 compact tractors featuring powerful Mitsubishi diesel engines deliver 24 hp. What's more, the majority of the gross engine horsepower gets turned into usable power at the PTO to run a variety of implements thanks to an ultra-efficient Tier IV driveline.

Clean Tier IV Compliant engines

3-cylinder engines meet Tier IV regulations without the need for additional fluids or hardware. The Boomer™ 24 will run clean all day long with no extra operator input. They run clean - automatically.

FEWER FILL-UPS TO SLOW YOU DOWN

How far will you go with one of the largest fuel tanks on the market? Fill up the productivity-boosting 6.6-gallon, hood -mounted fuel tank and see for yourself. It's sure to last all day long.

WELL-EQUIPPED FOR INCLEMENT WEATHER

To ensure fast starts in cold weather, Boomer™ 24 compact tractors come equipped with a quick-heating glow plug package and a heavy-duty 560 CCA battery that provides plenty of cranking power.

Specifications

Model Boomer 24
Engine

Gross horsepower, hp (kw)

24.4 (18.2)

Rated Speed (rpm)

2700

Type

3-cylinder, diesel Tier 4

Displacement, cu. in. (L)

80.4 (1.3)

Air Cleaner

Single replaceable dry element

Fuel Tank, gal (L)

6.6 (25)

Alternator, amps

50

PTO



PTO

Standard rear and mid PTO

PTO HP (HST), hp (kw)

18.5 (13.8)

PTO speed (rpm)

540 rear/2000 mid PTO

PTO Type

Electro-hydraulic engaged; independent
Transmission

Type, Mechanical/hydrostatic

HST+2 range

Maximum forward speed, HST – mph (kph), R4

11.3 (18.6)

Cruise Control

Standard

Rear diff. lock engagement

Mechanical/foot

Brake type

Mechanical/wet, multi disc
Hydraulics

Implement hydraulic flow, gpm (lpm)

6.7 (25.5)

Steering hydraulic flow, gal. (lpm)

2.9 (11)

Remote valves

Optional DIA

3-point lift capacity @ ball ends, gal. (lpm)

1433 (650)

3-point linkage category

1

Steering type

Hydrostatic

Dimensions/Weight



Wheel base, in. (cm)

59 (150)

Length, in. (cm)

103.6 (263.2)

Height (ROPS), in. (cm) 85.5 (217.3)

85.5 (217.3)

Width, in. (cm)

49.1 (124.7)

Weight (HST), lbs. (kg)

1708 (775)

Tire choice

R3 turf tread or R4 industrial tread
