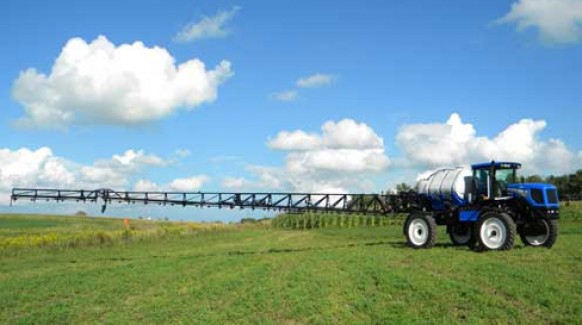

New Holland SP.240R

Double tap to zoom



Features

NEW CAB DESIGN
The New Holland Guardian Sprayers are now offered with a new and improved cab. The new cab has a wide array of options to enable the operator to stay in the field longer, with superior comfort.
• New shape and styling• Larger door – easier access
• Two rear windows improve visibility
• New cab mounting to improve support and ride
• Standard – total of 16 working lights
• New, all-glass headlights• Larger, safer ladder
• Available in Deluxe or Luxury

CAPACITY UP TO 1,200 GALLONS
Choose the tank that suits your needs – 1,000 or 1,200 gallon tanks in poly or stainless steel construction. Stainless steel tanks have integrated saddles. A deep sump design allows for complete draining and less product waste.

RUGGED AND RELIABLE
For wide boom widths, choose the outstanding strength and rugged reliability of a truss boom system. The center section of the truss boom features a double pendulum suspension system with nitrogen accumulators to absorb the shock of boom movement. The result is a smooth, consistent boom height and spraying accuracy. The boom rest is now fixed in place, so you are no longer required to slide it in and out.

MORE POWER TO THE GROUND
The simple, reliable mechanical drive system used on Guardian Rear Boom Sprayers transfers more power to the ground for higher productivity, better fuel economy and lower operating costs.

EASY TO SERVICE New Holland Sprayers are designed for easy routine maintenance with components and fill points that are easy to reach.

Specifications

SP.240R
Engine
Make / Displacement Liter Cummins QSB / 6.7 / Tier III
Rated Power (hp)(kW) 240 (179)
Alternator (Amp) 160
Fuel Tank Capacity (US Gal) (Liter) 120 (454)
Drive Train
Transmission / Type Automatic/ Allison/ RDS 2500
Torque Converter Standard
Torque Converter. 5 speed automatic
Differential / Lock system Axle Tech / Hydraulic lock up
Service Brakes 2 heavy duty power external discs on rear axle w/ dual caliper for each disc
Parking Brakes Spring applied hydraulic release
Wheel Drive 2 WD
Angle Drive shaft w/ planetary hubs (in) (mm) Optional Axle Tech with 42 (1067) clearance
Drop Boxes (in) (mm) Optional with 48 (1219) clearance
Ground Speed w/ std. tires (mph) (kph) 0 to 42 (67.6)
1st Range 8.9 (14.3)
2nd Range 16.4 (26.4)
3rd Range 21.6 (34.8)
4th Range 31.2 (50.2)
5th Range 42 (67.6)
6th Range NA
Aux Hydraulics
System Capacity (gpm) (lpm) 30 (114)
Performance Pressure compensating. Max system pressure at idle. Closed loop flow for best dirt protection.
Chassis
Frame C-Channel bolted - 3x9x3/8 110,000 psi
Suspension Air bag with Sway control - adjustment on all 4 air bags
Front (in) (mm) >11 (279) travel
Rear > 9 (229) travel
Tire Options 380/90R46, 320/90R50, 520/85R38, or 520/85R38 front w/ 710/70R38 rear (380/90R46 dual options available)
Fenders Standard
Turning Radius (ft)(m) 15 (4.57)
Track Width (in)(mm) 120 (3048) to 150 (3810)
Wheel Tread Adjustment from Cab Optional hydraulic adjust
Wheel Base (in) (mm) 150 (3810)
Crop Clearance with Standard Tires (in) (mm) 42 (1067) (angle), or 48 (1219)(drop)
Overall Chassis Length (ft)(m) 27 (8.23) (boom unfolded)
Overall Width (in) (mm) 171 (4343)
Height(in) (mm) 155 (3937)
Dry Weight (lbs.) (kg) 28500 (12927)
Liquid System
Polyethylene Tank (US Gal)(Liter) 1000 (3785) or 1200 (4543)
Stainless Steel Tank (US Gal) 1000 (3785)
Tank Agitation Poly - Twinjet nozzles
Tank Agitation. SS - sparge tube
Rinse Tank Capacity (US Gal)(Liter) 100 (379)
Rinse System Manual or electric
Chemical Eductor Optional 3.6 gal. SS w/ rinse system
Fast Fill (in)(mm) 2 (50.8); 3 (76.2) optional
Solution Pump
Make / Model ACE 150F Series
Gpm (lpm) Up to 120 (454)
Rate Control System
Make and Model Standard Raven 5000, Envizio Pro, Viper Pro, Envizio Pro XL, New Holland Intelliview
Flow Control RFM 60 / Optional RFM 100
GPS Optional (Intellisteer Kit)
Boom Height Control Optional Raven Ultraglide/Ultrasonic or PowerGlide/Touch wheel system
Boom
Width Options (ft)(m) 90/60 (27/18), 100/60 (30/18)
Sections 5 or 10 section
Height Adjustment (in)(mm) 20 (508) – 80 (2032)
Breakaway On the secondary boom wing
Boom Pipes (in) (mm) 1 (25) stainless steel
Nozzle Bodies Center (in)(mm) 15 (381) or 20 (508)
Nozzle Bodies 3 way, 5 way, or 3+1
Suspension. Double Pendulum
Fence Line Spray Tip Optional
Strainers
Pressure 50 or Optional 80 mesh y-strainer
Boom (In line Filters) Optional 50 or 100 mesh
Foam Marker
Capacity (US Gal)(Liter) Foam injection uses 100 gallon (379) rinse water, holds 3 gallons (11) of foam concentrate
Air Compressor Engine driven
