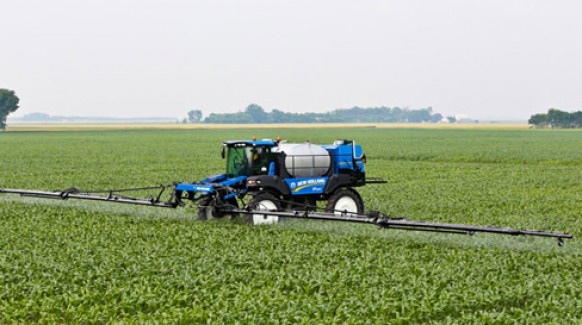

New Holland SP.300F

Double tap to zoom



Features

MORE ROOM, MORE GLASS
Comfort is built into the Guardian Front Boom Sprayers to put you at ease, even during long days in the field. Guardian cabs are long and wide with more glass area for exceptional visibility. Curved rear cab windows also improve your visibility if there is ever a need to look over your shoulder.

NEW SP310F CAB
Step into the spacious newly designed SP310F cab and long days will melt away. Sitting tall in the sprayer, you have a larger field of view through the full-height windshield and past redesigned lift arms to the front boom view. The wide air-ride seat ensures every operator stays comfortable even after extended spraying hours. Details like footpegs on the steering column, Bluetooth and XM radio, push-button engine start and backlit, dimmable switches add up to major comfort. The Automatic Temperature Control (ATC) system comes as standard equipment on the SP310F.

MAKE ADJUSTMENTS CONVENIENTLY RIGHT FROM THE CAB
The Guardian SP310F allows you to adapt to changing needs without leaving your seat, including adjusting sprayer under-body clearance from 72 to 78 inches on the go. When spraying fungicide, there’s no need to leave the cab to activate the rear fungicide boom. Operate the standard electric rinse system from either the cab or from the ground. For even more convenience, order the optional auto rinse system.

FINGERTIP CONTROLS
Guardian sprayers are easy to operate. The multi-function handle puts all critical function controls at your fingertips for precise, efficient control of the transmission, throttle, boom and individual sections. The convenient armrest command console is mounted on the seat and moves with the operator. Large switches are backlit and dimmable so they are easy to see and use.

INDUSTRY-LEADING RIDE
Expect the best in operator comfort and ride with reduced machine stress. These features combined with better boom stability provide unmatched spray accuracy at high speeds.

LOW NOISE
It’s quieter on board a Guardian sprayer so you can actually hear yourself think. With the engine mounted in the rear, the noise level is extra quiet, reducing fatigue and allowing you easily focus on the work ahead.

THE LIGHT YOU NEED
Sixteen adjustable, powerful halogen and HID lights in combination allow you to keep spraying when conditions are right to work late. An auxiliary lighting package includes more Xenon HID lights and additional work lights for enhanced visibility in all conditions.

TWO CAB PACKAGES
Select from two cab configurations: Deluxe or Luxury. Both are pre-wired from the factory for New Holland IntelliSteer™ auto-guidance and both include active charcoal filtration with in-cab secondary filter. The Deluxe cab offers a comfortable, adjustable high-back instructor’s seat, radio with CD player and weather band, auxiliary power outlet, and an adjustable tilting and telescoping steering column.

LUXURY CAB PACKAGE
The Luxury cab package features set-and-forget automatic climate control, foot pegs and the Grammer Evolution high back suede leather seat. It’s fully adjustable, heated and vented, too. The steering wheel is also leather-wrapped and you get enhanced radio with XM Satellite, Bluetooth and more luxury features. In addition, the cab is equipped with USB charge ports and a RAM X-Grip® mount for tablets and cell phones. Choose the Luxury cab on the SP310F and a refreshing drink is only an arm’s length away in the integrated fridge located under the instructor seat. The SP310F luxury cab option also includes a rear camera, auto on/off headlights, integrated self-charging flash light and 110-volt power outlet.

15:9 TOUCHSCREEN DISPLAY (SP295F, SP300F, SP345F, SP400F)
An upgraded ISO bus-ready 7-inch, 15:9 touchscreen engine/transmission display is standard equipment. It is located are the front of the armrest and provides clear, on-the-go information on engine, DEF, electronics, transmission and plumbing operations. With the touch of a finder, the touchscreen display allows the operator to control all sprayer plumbing operations such as agitation (sparge), rinse, main tank sump, etc. In addition, the display works in conjunction with a rear backup camera option.

CHASSIS MONITORS (SP310F)
The SP310F’s right-hand chassis monitor is mounted on an adjustable swing arm and allows operators to control many functions of the sprayer, and select what is displayed on the monitoring screen. The headliner chassis monitor continually displays operating functions of the chassis including speed, rpm, spray pressure, temperatures and fuel level. It is mounted on the ceiling where it does not disrupt the operator’s line of sight to the spray boom. A new spray info bar with light-up section display is mounted to the ceiling and lets you know which boom systems are operating.

INTELLIVIEW™ IV MONITOR
The IntelliView™ IV color, 10.5-inch, touchscreen display is available as an option from the factory. In addition to monitoring all sprayer functions, the IntelliView IV monitor allows you to control boom height, section controls, prescription applications and auto guidance (if so equipped) – all from one monitor. The display offers direct USB connectivity for data collection, and can provide summaries for product applied and area worked – by farm, by field, by operator, by crop and more.

RAVEN DISPLAY OPTIONS
If you prefer, you can request your Guardian™ sprayer with Raven precision options factory installed. Choose the Raven Viper® IV controller for automatic sectional boom control, boom height control, auto-guidance, mapping and data-logging capabilities.

Specifications

SP.300F
Engine
Make / Displacement Liter Cummins QSB / 6.7 / Tier 4B
Rated Power (hp) (kW) 300 (224)
Power Bulge (hp) (kW) 310 (231)
Alternator (Amp) 200
Fuel Tank Capacity (U.S. gal) (L) 150 (568)
DEF Tank Capacity (U.S. gal) (L) 15 (57)
Drive Train
Transmission / Type Hydrostatic drive with Twin Sundstran heavy duty pumps
Speed Ranges 3 speed
Wheel Motors Poclain® Direct Drive MS18
Service Brakes 4 wheel internal wet disc
Parking Brakes All 4 wheels
Wheel Drive 4 wheel drive
Leg Profile / Clearance (in) (mm) Narrow 18 (457) profile, 72 (1829) clearance
Ground Speed w/ std. tires (mph) (kph) 0 to 26.6 (42.8)
1st Range (mph) (kph) 13.2 (21.1)
2nd Range (mph) (kph) 17.8 (28.5)
3rd Range (mph) (kph) 26.6 (42.8)
4th Range (mph) (kph) NA
5th Range (mph) (kph) NA
Aux Hydraulics
System Capacity (gpm) (lpm) 31 (117) or 51 (193) option
Performance Closed center, pressure compensated, Eaton pump with 2500 psi operating pressure
Chassis
Frame 100,000 psi High Strength steel
Cab Mount Front Mount Cab
Tank Mount Mid Mount Tank
Engine Mount Rear Mount Engine
Suspension Hydraulic with accumulators
Front (in) (mm) 20 (508) (10 (254) up / 10 down)
Rear (in) (mm) 20 (508) (10 (254) up / 10 down)
Tire Options 320/90R50 161 IF, 380/90R50 170 IF, 380/90R46 168 IF, 380/105R50 166, 380/90R46 173 VF, 420/95R50 VF, 480/80 R42 166, 520/85R38 170, 650/75R38 169
Fenders Standard
Turning Radius (ft) (m) 15' (4.6)
Tread Width Adjustment (in) (mm) Note: Based on 380 tire options 120 (3048) to 160 (4064), spread equal side to side
In-Cab Tread Width Adjustment Standard equipment hydraulic adjust
Wheel Base (in) (mm) 177 (4496)
Crop Clearance with Standard Tires (in) (mm) 72 (1829)
Overall Chassis Length (ft) (m) 30.3 (9.24)
Overall Width (in) (mm) 12.8 (325)
Weight and Balance Front to Back 50/50
Height (in) (mm) 13.2 (335)
Liquid System
Tank Capacity (US Gal) (Liter) 1200 (4543), 1400 (5300), 1600 (6057) cross mounted
Polyethylene Tank (US Gal )(Liter) NA
Stainless Steel Tank (US Gal) (Liter) 1200 (4543), 1400 (5300), 1600 (6057)
Tank Agitation Sparge tube
Rinse Tank Capacity (US Gal, inch)(Liter, mm) 150 US gallon (568) with 2 (51) quick fill
Rinse System Manual or electric
Chemical Eductor (US Gal) (Liter) Optional 3.6 (14) SS w/ rinse system
Fast Fill (in) (mm) 2 (51); 3 (76) optional
Solution Pump
Make / Model Hypro 9306C Standard
Gpm (lpm) Up to 220 (833) at the pump
High Flow Option Hypro 9307C up to 310 (1174)
Rate Control System
Controller Options Raven, Envizio Pro XL™, Viper Pro™, Viper® 4 or Intelliview IV™
Flow Control RFM 100/Optional RFM 60
GPS (optional) Optional (Intellisteer Kit)
Boom Height Control Raven Ultraglide with Ultrasonic sensors
Boom
Boom Mount Front Mount, 100% visibility
Mono-boom Widths (ft)’ 90/60, 100/60, 120/70
Truss-boom Widths (ft)’ 20/73, 132/73, 135/73
Spray-Air® boom Widths (ft)’ 90, 100, 120
Height Adjustment (in) (mm) 22 (559) – 118 (2997)
Breakaway On the secondary boom wing
Boom Pipes (in) (mm) 1 (25) stainless steel
Nozzle Body Spacing (in)(mm) 15 (381) or 20 (508)
Nozzle Body Spacing Spray-Air® only (in) (mm): 10” (254)
Nozzle Body Options 3 way, 5 way, 3+1
Electric Fence Line Spray Nozzle Standard
Sections 5 sect. (10 section option)
Suspension Nitrogen Accumulators Optional
Primary Strainer (std. pump) 50 or Optional 80 mesh y-strainer
Boom In-Line Strainers Optional 50 or 100 mesh
Foam Marker
Capacity (US Gal) (Liter) Foam injection uses 150 (568) rinse water, holds 3 (11.4) of foam concentrate
Air Compressor Standard Engine driven
