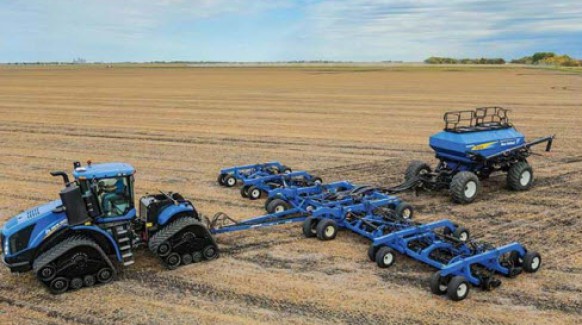

New Holland P2080 - 60ft

Double tap to zoom



Features

PRODUCTIVE PERFORMANCE IN THE FIELD
The P2080 disk drill model is specifically designed for P1000 Series air cart applications. It’s offered in 30-, 40-, 50- and 60-foot widths in 7.5- or 10-inch spacing for big acres and maximum productivity. The frame design offers exceptional weight distribution that is ideal for many different crops and soil types. In addition the narrow V-shape envelope adds additional stability for safe and convenient transport to and from the field.

PARALLEL LINK DESIGN
Industry leading patented parallel link design provides even seeding placement at higher speeds and on rougher terrains. It ensures best-in-class emergence in a wide variety of soil, seeding depths, and field conditions. The low maintenance design allows farmers to spend more time where it counts – in the field.

DEPTH CONTROL
For a customer who demands high productivity, look no further than the P2080 Disk Drill. The true 0-3.5” depth settings accommodate all seeding depths and the single-handed adjustment makes the P2080 the easiest depth adjustment on the market.

ACCURATE SEED PLACEMENT
The accurate seed placement is ideal for small grains such as wheat, barley, rice and canola. The new scraper and opener geometry allow for consistent seeding depth across the range of operation. There is no need for a seed shelf, as the seed can be placed in the bottom of the trench. High mounting of the seed tube ensures reduced wear, long life, and reduced plugging over the competition. The 18” disk cuts cleanly through the heaviest of crop residue’s to ensure optimal seed to soil contact. This ideal disk size reduces residue 'hair pinning' and maximizes seed to soil contact for ideal seed germination. The disks are also set at a seven-degree angle to open a uniform seed trench where the seed is accurately placed.

CLOSING SYSTEM DESIGNED TO ACCOMMODATE VARIOUS SOIL CONDITIONS
A heavy-duty-rubber, smooth-faced concave 4”x12” packer wheel is designed specifically for exceptional closing in tough conditions, whether you have clay, sandy or both types of soils. The double-edge closing wheel follows behind to seal the trench and is effective in a wide variety of soil conditions. The closed trench is essential to providing maximum seed-to-soil contact for uniform germination and plant stand establishment. The hollow center of the closing system further maintains a smooth field finish and reduces soil compaction.

VARIABLE PACKING PRESSURE RANGE ADJUSTMENT
The operator can further tailor the drill for varying moisture conditions and soil types with the variable packing pressure range adjustment. There is three convenient settings of 60, 75 and 85 pounds of available variable packing pressure for each row unit.

IN-CAB DOWN-PRESSURE CONTROL
In-cab hydraulic down pressure adjustment is standard equipment, allowing operators to make on-the-go adjustments without leaving the seat by using the IntelliView™ IV display. Three convenient presets help maintain ideal row-unit down pressure for changing field conditions. (ISO11783 electronics compatible with IntelliView™ IV monitors).

UNMATCHED DURABILITY COMBINED WITH REDUCED MAINTENANCE COSTS
P2000 Series disk drills set a new higher standard when it comes to durability. You’ll find no other model comes close. And, durability is the key to reducing your downtime and maintenance costs. How tough are your soil and field conditions? Whether you have rocks, sandy soils or corn stalks, wear and tear on P2000 Series disk drills is minimized in unforgiving environments. Take a look and see how New Holland has given careful attention to the durable details of these drills.

BEST WING FLEX IN INDUSTRY
The P2000 series disk drill offer the best wing flex in the industry. It’s flexible frame provides a total of 25°total flex – 10° flex up and 15° flex down. This feature allows for consistent accurate seeding placement across in the width of the drill. Flexibility also disperses frame stress for more durability than traditional welded joints. Where the frame flexes, durable, self-lubricating joints with chrome pins and polyurethane pads add lasting performance unmatched in the industry.

BEST-IN-CLASS FLOTATION
A high flotation walking beam tandem axle option is available on all models of the P2000 Disk drill. The option features walking beam tandem axles on both the front and the rear mainframes. This unique feature provides maximum flotation in the toughest conditions. In addition this axle option allows for better ground following and better crop emergence on wheel tracks.

Specifications

P2080 - 60 ft
Specifications
Toolbar Width, ft (m) 60 (18.3)
Transport height, ft (m) 14.75 (4.5)
Transport width, ft (m) 18.7 (5.7)
Road-to-opener Clearance, in (cm) 8.5 (21.6)
Weight 7.5 " spacing (empty), lbs (kg) 45500 (20412)
Weight 10 " spacing (empty), lbs (kg) 41500 (18597)
Length w/ rear hitch (pin to pin), in (m) 38.6 (11.76)
Available Spacing, in (cm) 7.5 (19.1) & 10 (25.4)
Split rank capability, in (cm) 15 (38.1)
Number of row units 7.5" spacing 96
Number of row units 10" spacing 72
Minimum tractor PTO hp required 7.5" spacing* 364.8
Minimum tractor PTO hp required 10" spacing* 273.6
Minimum tractor PTO hp required 7.5" spacing with air cart* 430 to 465
Minimum tractor PTO hp required 10" spacing with air cart* 339 to 374
Fold Type Double
Wing Sections 5
Tires total 20 (24 optional)
Center section walking beam castor tires 16.5 x 16.1 E
Rear mainframe dual walking beam tire size 16.5 x 16.1 E
Inner and outer wings walking beam castor tire size 12.5L x15
Operating Speed mph (kph) 5-8 (8-12.7)
Hitch Type Floating
Ground following design Parallel link
Row unit travel from level surface, in (cm) 8.5 (21.6) up, 11.5 (29.2) down
Wing flex 15 degrees up, 10 degrees down
Disks, in (cm) 18 (45.7) at 7 degrees
Depth settings, in (cm) 14 position T-handle adjust from 0 to 3.5 (8.9)
Down pressure adjustment Variable spring
Closing wheel variable packing pressure, lbs (kg) 60, 75 or 85 (27.2, 34 or 38.6)
Standard in-cab down pressure control, lbs (kg) 200 to 1400 (91 to 635)
Hydraulic requirements, gpm (lpm) 30 (114) – 3 remotes
Hydraulic system In cab down pressure adjust standard
Tow between/behind air cart capacity, bushels (l) 280 to 580 (9867 to 20439)
Mounted Seed tank capacity, bushels (l) NA
Mounted tank NA
Display system Intelliview IV or ISO11783 compliant display
Sectional control 1/2 width - optional DIA on Air Cart
Blockage Monitoring Optional
Optional equipment
High floatation tire option Optional
Hydraulic work switch Optional
Weight bracket Optional
Meter roll selection (extra fine, fine, coarse) Optional
Auxiliary rear hitch Optional
4-section metering with overlap control
Cross tillage hydraulic package Optional
GPS speed sensor
Split-rank header insert, 7.5” (19.1 cm) Optional
Primary run blockage Optional
Secondary run (all run) blockage hydraulic work switch Optional
1/2 width sectional control on air cart Optional
Extended wear air package Optional
