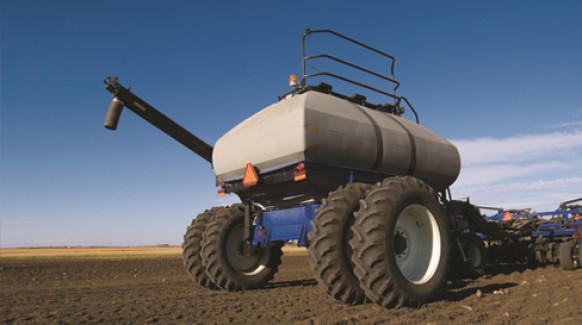

New Holland P1050

Air Carts P1050

Double tap to zoom



Features

MORE OPTIONS WITH FIVE MODELS SUIT YOUR REQUIREMENTS
The P1050 and P1060 feature three integrated polyethylene tanks, allowing you to carry up to three separate products for single- or double-shoot applications. The P1070 features three tanks made of steel. The three-tank configuration creates more options for applying seed, fertilizer or granular products in a single pass. The P1030 and P1040 feature an integrated polyethylene tank that is divided into two compartments for single- or double-shoot applications.

UNMATCHED PRODUCT DELIVERY AND ACCURACY
Power-efficient, highly adaptable air cart air distribution uses patented downdraft meter technology, dividing product into equal sections—one for each primary line in the distribution system. Air and product mix in a parallel flow, transitioning smoothly from the meter box to the distribution system which provides unmatched product rate accuracy. Easy Flow headers provide unbeatable product flow and gentle seed handling from primary to secondary lines.


METER ROLLERS COVER FULL SPECTRUM OF SEED SIZES
A wide range of meter roller designs provide accurate metering and efficient operation for a variety of seed sizes, from the smallest forage seed to the largest bean.

ADVANCED MONITORING AND CONTROL
You can be confident that all machine functions are operating at peak efficiency with the IntelliView™ IV monitoring system. This user-friendly color touchscreen display is a common operating platform found on other New Holland equipment lines such as combines a tractors. The display is easy to read day or night and conveniently monitors the seeding system's in-field performance on both mechanical and variable rate air carts. The display also makes calibrating a breeze and takes the guesswork out of rate setting. On air carts equipped with variable rate the operator also has the ability to change product rates on the go. On air carts equipped with sectional control the operator has the ability to turn sections on or off or set up automatic control via GPS signal.

Specifications

P1050
---
Capacity, bu. (l) 380 (13390)
Compartments Three
Splits (tow between), bu. (l) 169/93/118 (5955/3277/4148)
Splits (tow behind), bu. (l) 118/93/169 (4158/3277/5955)
Dimensions
Ground clearance, in. (m) 25 (0.64)
Height, ft. in. (m) 14’ 11” (4.55)
Overall width Single wheels, ft. in. (m) - 12’ 8” (3.86)
Overall width Dual wheels, ft. in. (m) - 16’ 2” (4.93)
Tow-behind length, ft. in. (m) 28’ 3” (8.61)
Tow-behind weight (empty), lb. (kg) 10,900 (4955)
Tow-between length, ft. in. (m) 29’ 4” (8.94)
Tow-between weight (empty), lb. (kg) 10,900 (4955)
Tires
Front caster Dual
(on tow-behind model only) 22.5 L x 16.1 STII tires
Rear Tires Valves Single-/double-shoot
Rear Tires Primary lines Up to 8
Rear Tires Fan drive Hydraulic dual fan
Meter drive system Mechanical or variable rate available
Fill auger, in. (cm) x ft. (m) 10” (25.4) x 19’ (5.8) Steel cupped flighting
Deluxe auger with Remote Control Optional
Sectional Control Optional 2 section control available
