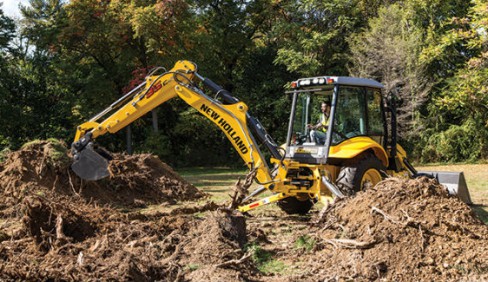

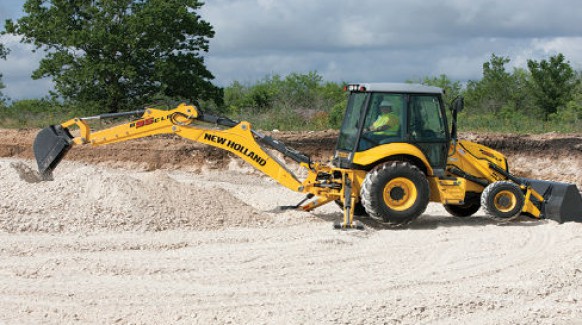

New Holland B95C LR

Loader Backhoes B95C LR

Double tap to zoom



Features

Using the same curved-boom design used on big excavators, C Series backhoe delivers big digging performance. In-line cylinders improve visibility while increasing digging performance. Dual swing cylinders provide fast, smooth positioning of the arm over the trench. The HED system provides the fine control needed for delicate operations.

UNMATCHED LIFT CAPACITY, BREAKOUT FORCE AND BUCKET ROTATION
C Series straight-arm loader linkage transfers bucket forces straight back to the tractor frame, providing lift capacity and breakout force that’s unmatched.

TOTAL CONTROL AT YOUR FINGERTIPS
An ergonomic controls layout makes operation easy. All loader and bucket functions are integrated on one a single joystick. Pilot controls are available for improved productivity and comfort.

COMFORT THAT EQUALS PRODUCTIVITY
The quiet, roomy C Series cab includes storage space, a wide glove box, easy-to-read gauges, heat with optional air conditioning. Comfortable seating with adjustable armrests keeps you working productively, and you can choose the optional air ride seat for supreme comfort.The large glass area and a narrow boom provide excellent visibility for improved operator confidence. Side windows open for ventilation and easy communication.

AUTO GLIDE RIDE™ OPTION
Glide Ride activates automatically at the ground speed you choose, preventing loader arm bounce to retain what’s in the bucket.

BEST-IN-CLASS SERVICE ACCESS
The tilting C Series engine hood gives you excellent ground-level access to the engine and service points. Unlike competitive models, the hood is in one piece that remains attached so there are no panels to lose. All daily check and fill points are grouped together to save time.

Specifications

Engine

Make and model FPT F5BFL413B*B003
Displacement, cu in (l) 207 (3.4)
Horsepower, gross, hp (kW) 97 (72)
Horsepower, net hp (kW) 95 (71)
Peak torque, lb-ft (N-m) @ RPM 339 (459) @ 1400

Dimensions

Transport length, ft/in (mm) 23’ 0” (7030)
Transport height, ft/in (mm) 12’ 6” (3815)
Wheelbase, in (mm) 85.6” (2175)
Height to top of cab, ft/in (mm) 9’ 5” (2870)
Ground Clearance, in (mm) 15.5” (394)
Transport width, ft/in (mm) 7’ 6” (2300)
Stabilizer spread, operating, ft/in (mm) 10’ 7” (3226)

Loader Dimensions

  1.1 cu yd Heavy-Duty General Purpose
Height to hinge pin, ft/in (mm) 11’ 5” (3481)
Reach @ 45 degree dump angle, ft/in (mm) 2’ 5” (725)
Bucket breakout force, lbf (daN) 13,977 (6340)
Lift capacity to full height, lbs (kg) 7,996 (3627)

Weight

Base Unit 18,525 lbs (8402 kg)

Transmission

Power Shuttle
Gear 4F/4R
Max Fwd travel speed, mph (kph) 22.5 (36.2)
Powershift
Gear 4F/3R
Max Fwd travel speed, mph (kph) 22.1 (35.5)

Hydraulic System

Pump capacity gpm (lpm) 40 (151)
System relief pressure 3,045 psi

Backhoe Dimensions

Standard
Max dig depth, ft/in (mm) 15’ 6” (4727)
Loading Height, ft/in (mm) 12’ 4” (3768)
Max pin height, ft/in (mm) 16’ 4” (4969)
Loading Reach @ max height, ft/in (mm) 5’ 4” (1615)
Reach from swing post, ft/in (mm) 17’ 11” (5450)
Bucket capacity, cu ft (m³) 18’ 7” (5664)
Bucket digging force, lbs (kg) 12,969 (5883)
Crowd digging force, lbs (kg) 8,520 (3868)
Extended
Max dig depth, ft/in (mm) 18’ 11” (5770)
Loading Height, ft/in (mm) 14’ 6” (4431)
Max pin height, ft/in (mm) 17’ 7” (5359)
Loading Reach @ max height, ft/in (mm) 7’ 10” (2398)
Reach from swing post, ft/in (mm) 21’ 0” (6409)
Bucket capacity, cu ft (m³) 21’ 8” (6604)
Bucket digging force, lbs (kg) 12,969 (5883)
Crowd digging force, lbs (kg) 6032 (2736)
