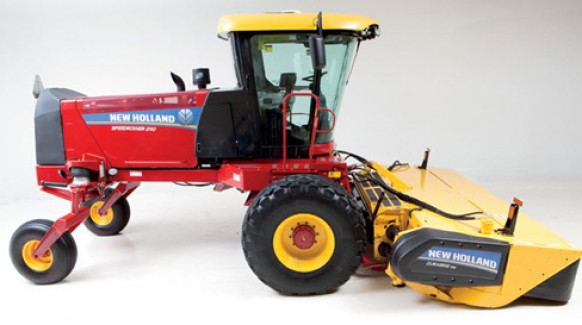

New Holland Speedrower 240

Double tap to zoom



Features

POWERFUL AND EFFICIENT ABUNDANT HORSEPOWER

Choose from three Speedrower® windrower models with Tier 3 emission engines rated at 126, 190 and an industry-leading 226 horsepower. Full-flow turbochargers and intercoolers provide quick response and high fuel efficiency.

INDUSTRY-LEADING COMFORT AND CONTROL

Speedrower windrowers continue to provide optimum visibility, plenty of room and comfort with a full-size instructor’s seat and optional heated leather seat.

PRECISION FROM THE FACTORY

Speedrower® SP windrowers now feature integrated IntelliSteer™ auto guidance that is fully installed and tested at the New Holland plant in Grand Island, Nebraska. Both windrower steering and the guidance system are controlled completely with hydraulics so there’s no delay in response due to wires, electronics or steering linkages that slow other windrowers.

Specifications

SPEEDROWER® 240
Engine
Engine New Holland 6-cylinder, Tier 3
cu. in. (L) 411 (6.7)
Type Turbocharged with air-to-air intercooler
Rated horsepower hp (kW)* 226 (168) @ 2200 rpm
Fuel injection pump Electronically controlled high-pressure common rail
Batteries / alternator 2, 12-volt 650 CCA / 150 amp
Fuel capacity gal. (L) 120 (454)
Rotating wand cooling system pre-cleaner Standard
Transmission
Transmission Dual range hydrostatic
Final drive Double reduction planetary
Steering Hydrostatic
Speed range, depending on front drive tires: 2 speed drive mph (kph) 0-31.4 (0-19.5)
Speed range, depending on front drive tires: 3 speed drive mph (kph) 0-24.7 (0-39.8)
Length
Length with header in. (mm) 283 (7188)*** with Durabine 416
Length less header and lift arms in. (mm) 199.2 (5060)***
Height in. (mm) 134.8 (3424)***
Wheelbase in. (mm) 144.1 (3659)
Front tread width in. (mm) 154.8 (3932)***
Rear tread width (adjustable) in. (mm) 90–105–120 (2286–2667–3048)
Rear axle suspension Standard
Tractor weight lbs. (kg) 11,225 (5092)***
Rear axle tires 14L x 16.1 8PR
Rear axle ground clearance in. (mm) 41.97 (1066)**
Header drive Hydraulic
Header flotation Independent hydraulic flotation (flotation weight at each end of header independently controlled from cab)
Hydraulic header tilt Standard
Header power reverser Standard
Adjustable windrow shields (on hay units) Standard
In-cab windrow-width adjustment Optional
Single lever header transport lock system Standard
Cab
Cab Deluxe, curved tinted glass
Cab suspension Standard
Cab air filtration Dual: 1 external air filter and 1 in-cab recirculation filter
Seat Deluxe air suspension seat with fore / aft lumbar adjuster, ride dampening
Seat (leather heated) Optional
Instructor seat Standard
