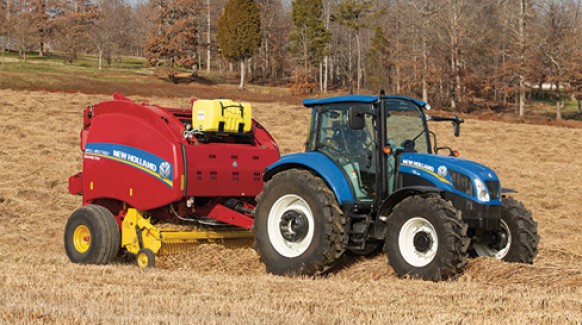

New Holland Roll-Belt 460

Roll-Belt Round Balers Roll-Belt 460

Double tap to zoom



Features

A DESIGN PACKED WITH INNOVATION YIELDS BALES PACKED WITH HAY The key to quickly forming perfect cores in any crop condition is New Holland’s proven combination of rolls and belts. The design of Roll-Belt balers utilizes heavy-duty steel rolls in both the front of the baler as well as in the floor of the bale chamber. The rolls are combined with short, tough belts in the back to deliver fast, consistent core formation and tight, uniform bales regardless of the crop you’re baling. This proven combination also forms the densest bales in the industry. By packing more of your valuable crop into each bale, you save time and money in numerous different ways.

SIMPLIFIED TYING AND WRAPPING TRADITIONAL TWINE TYING For classic baling, redesigned twine wrapping systems are available on all models. You can load six active balls of twine in the front twine carrier on Roll-Belt™ 450 and 460 balers. On Roll-Belt™ 550 and 560 balers, you can use eight active balls by removing the dividers. As an option, four additional twine balls (two per side) can be stored on each side of the baler.

INTUITIVE BALE COMMAND™ MONITORS Whether you’re a part-time farmer in need of the basic controls found on the Auto-Wrap™ II monitor or a professional, full-time farmer requiring the fast hookup and advanced capabilities of the IntelliView™ IV monitor, there’s a monitor that’s right for your application.

MORE DRIVING FORCE AND MORE CHOICES Enhancements on Roll-Belt™ balers have led to an impressive increase of 20% in belt driving force in comparison to previous BR7000 models. How? In addition to repositioning the backwrap roll to improve driving efficiency and reduce belt slippage, an updated selection of belts is now available.

Specifications

Roll-Belt™ 460
Bale Size
Diameter, in. (cm) 36-72 (91.5-182)
Width, in. (cm) 46.5 (118)
Weight, lbs. (kg) 400-2,300 (181-1043)
Density Pressure, psi (kPa) Adjustable
Baler Dimensions and Weights
Overall length, tailgate closed, in. (cm) 189 (481)
Overall height, tailgate closed, in. (cm) 113 (287)
Shipping weight*, lbs. (kg) 6,553 (2972) *CropCutter with 21.5L tires
Bale Forming Chamber
Floor roll (ActiveSweep) in. (cm) 8 (20.3)
Floor roll (Rotor), in. (cm) 12 (30.5)
Floor roll (SuperSweep), in. (cm) 12 (30.5)
Forming rolls, in. (cm) 3 rolls, 10 (25.4)
Stripper roll, in. (cm) 10 (25.4)
Starter roll, in. (cm) Embossed surface
Bottom tailgate idler roll, in. (cm) 5.5 (14)
Belts
Number of belts 6
Belt width, in. (cm) 7 (18)
Belt length, in. (cm) 421 (1068)
Surface type (dependent on belt type) Mini Rough Top / Self-cleaning
Endless belts Std. on rotors, Silage Special, and Bale-Slice. Opt. on Dry Hay.
Wrapping System
Twine application Dual twine arms
Twine control Automatic, electric
Twine box 6 active balls
Additional twine storage 4 balls
Net Wrap EdgeWrap™ net wrap system, 3 roll capacity
Bale Forming Indicators
Standard Indicators Bale size, left/right driving gauges, twine movement, twine arm position, bale counter,
bale ejector, hydraulic pressure gauge, hydraulic bale ramp (460), tailgate latch
Tire Options
Implement tires 31 x 13.5-15 8 PR (N/A on rotor models)
Low profile flotation tires 18L x 16.1, 10PR
High profile flotation tires 21.5L x 16.1, 10PR
Tractor Requirements
PTO HP (minimum), hp. (kW) 70 (52)
PTO speed, rpm 540 or 1,000
Driveline protection Cut-out clutch or slip clutch
Hydraulic remote requirement 1 to 4
PICKUP SPECIFICATIONS - SuperSweep™ Pickups
Overall width, in. (cm) 88 (224)
Width, tine-to-tine, in. (cm) m 60 (152) 1.5
Width, flare-to-flare, in. (cm) 68 (174)
Tine spacing, in. (cm) 2.6 (7)
Tine bars 4
Number of tines 96
Reel diameter, in. (cm) 12 (30.5)
Pickup protection Multi-plate slip clutch
PICKUP SPECIFICATIONS - ActiveSweep™ (Standard-Duty) Pickups
Overall width, in. (cm) N/A
Width, tine-to-tine, in. (cm) m 71 (180) 1.8
Width, flare-to-flare, in. (cm) 79 (202)
Tine spacing, in. (cm) 2.6 (7)
Tine bars 4
Number of tines 112
Reel diameter, in. (cm) 12.5 (31.5)
Pickup protection Multi-plate slip clutch
PICKUP SPECIFICATIONS - ActiveSweep™ (Heavy-Duty) Pickups
Overall width, in. (cm) N/A
Width, tine-to-tine, in. (cm) m 71 (180) 1.8
Width, flare-to-flare, in. (cm) 79 (202)
Tine spacing, in. (cm) 2.6 (7)
Tine bars 5
Number of tines 140
Reel diameter, in. (cm) 12.5 (31.5)
Pickup protection Multi-plate slip clutch
PICKUP SPECIFICATIONS - SuperFeed™ Pickup
Overall width, in. (cm) N/A
Width, tine-to-tine, in. (cm) 71 (180)
Width, flare-to-flare, in. (cm) 79 (202)
Tine spacing, in. (cm) 2.6 (7)
Tine bars 5
Number of tines 140
Reel diameter, in. (cm) 12 (31.5)
Pickup protection Cut-out clutch
PICKUP SPECIFICATIONS - CropCutter® Pickup
Overall width, in. (cm) N/A
Width, tine-to-tine, in. (cm) 71 (180)
Width, flare-to-flare, in. (cm) 79 (202)
Tine spacing, in. (cm) 2.6 (7)
Tine bars 5
Number of tines 140
Reel diameter, in. (cm) 12.5 (31.5)
Pickup protection Cut-out clutch
