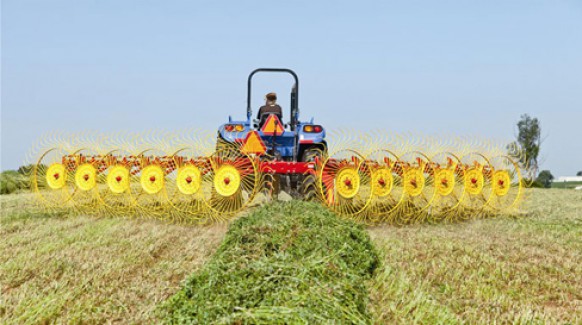

New Holland 1225 12-Wheel

Procart Deluxe Carted Wheel Rakes 1225 12-Wheel

Double tap to zoom



Features

BIG RACKING CAPACITY
Unlike other carted wheel rakes on the market, ProCart™ rakes offers a high frame clearance to accommodate high-volume crops. Yet, an overall compact design allows easy maneuvering in tight spaces. Gentle raking action delivers fluffy, fast-drying windrows, and when it's time to move on, simply pull the lever and the rake folds up for transport.

INDIVIDUAL FLOATING RAKE WHEELS
Floating rake wheels follow ground contours independently for clean raking with less stubble damage compared to rakes with tandem-mounted rake wheels. Specially curved rake-wheel arms provide more space for the hay to travel along the rake wheels without bunching to form a smooth, uniform windrow.


ADJUST TO YOUR CONDITIONS
Suspended by an adjustable spring, each rake wheel can be adjusted to your crop and field conditions for the cleanest possible raking. This innovative rake wheel pressure system uses a compression spring and linkage to provide fine adjustment and the highest possible reliability. There are no chains or springs under tension that can work loose or fail.

RAKE ANY WAY YOU CHOOSE
ProCart™ 1022 and 1225 rakes allow you to raise the front rake wheel when working in heavy crops, like first cuttings, or you can lower the front rake wheel into raking position for lighter late-season cuttings. This added flexibility allows you to produce the ideal windrow size for your baler, no matter the season or crop conditions.

ADAPT TO CHANGING HARVEST
ProCart™ 1022 and 1225 rakes allow you to raise the front rake wheel when working in heavy crops, like first cuttings, or you can lower the front rake wheel into raking position for lighter late-season cuttings. This added flexibility allows you to produce the ideal windrow size for your baler, no matter the season or crop conditions.

ON-THE-GO WIDTH CONTROL OPTION
Optional hydraulic raking angle control allows the operator to quickly adjust the working width and windrow width on-the-go right from the tractor seat.

CENTER KICKER WHEEL OPTION
A large 50-inch-diameter center kicker wheel moves and turns the hay at the center of the swath that typically remains unraked for faster, more consistent crop drying and easier pickup by the baler. The center kicker wheel is easily locked up for transport or when not required in the field.

Specifications

1225 12-Wheel
Finger Wheels
Number of finger wheels 12
Finger wheel diameter, in (m) 55 (1.4)
Teeth per wheel (#) 40
Dimensions
Overall length*, ft (m) 22' (6.7)
Minimum transport height, ft (m) 7’9” (2.4)
Transport width, ft (m) 8’ 5” (2.6)
Tread width outside of tirePs, ft (m) 5’ 10” (1.77)
Minimum working width*, ft (m) 21’ 8” (6.6)
Maximum working width*, ft (m) 24’ 6” (7.5)
Minimum windrow width*, ft (m) 3’ (0.9)
Maximum windrow width*, ft (m) 6’ 7” (2)
Weight, lbs (kg) 2115 (960)
Tires 205 – 75/15
Tractor requirement, hp (kW) 50 (36.7)
Tractor requirement, hydraulic 1 DA
