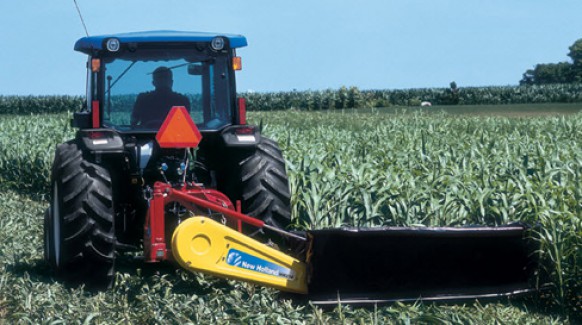

New Holland H6830 Side-Pull

Heavy-Duty Disc Mowers H6830 Side-Pull

Double tap to zoom



Features

A NEW LEVEL OF DISC MOWER PRODUCTIVITY.
The eight-disc heavy-duty H6830 pull-type disc mower combines the benefits of a wide 10-foot, four-inch cut with easy hookup and a low horsepower requirement.


IN-FIELD FLOTATION
The H6830 header is suspended from the main frame of the machine. Large flotation springs allow the header to float both vertically and laterally for even cutting in uneven terrain, preventing damage and bulldozing. You can adjust the flotation spring tension easily by turning the anchor bolts.

TIGHT TURNING, NARROW 10’10” TRANSPORT
The primary PTO uses an 80-degree constant velocity joint that permits tight turning. A secondary CV driveline option allows you to mow in the transport position to “steer” around field obstacles on the fly. Hydraulic tongue swing allows you to power the machine from transport to operating position and back. End shields flip up for a narrow 10-foot, 10-inch transport width.

WIDE 95-INCH SWATH
Wheels are located inboard of the cutting edge to eliminate run-down of uncut crop. Crop deflectors direct the cut crop inside the tire path and into a wide 95-inch swath.

Specifications

H6830 Side Pull
Cutter Bar
Cutting width ft. in. (mm) 10' 4" (3150)
Cutting height in. (mm) 0.95-3.25 (24-82.5)
Cutter bar tilt angle degrees 0 to -10
Cutter bar operating range degrees +18 to -28
Breakaway angle degrees NA
Cutter bar floatation Vertical adjustable spring
Type cutterbar MowMax™ cutterbar, modular, w/individual sealed reservoirs
Number of discs 8
Knives per disc 2
Disc cutting diameter in. (mm) 19.7 (500)
Disc drive Bevel gears in sealed modules
Disc speed RPM 2,835
Cutter bar gear protection Std. ShockPRO: easy replace ShockPRO hub with a partial complement of sacrificial splines
Swath width, approx standard** in. (mm) 95 (2413)
Swath width with optional swathboards** in. (m) N/A
Driveline
Minimum PTO horsepower required hp (kW) 60 (44.7)
Input speed RPM 540
PTO shaft spline/size required 6-spline/ 1-3/8"
Driveline protection Slip clutch
Overrunning clutch Standard
Belt tension N/A
Hydraulics and Hitch
Hydraulic circuits required Two remotes
Minimum relief pressure required psi (bar) 1,500 (104)
Hitch Category II drawbar
Dimensions and Weight
Overall width in. (mm) 196 (4978)
Overall length in. (mm) 183 (4648)
Height - transport position* in. (mm) 62 (1575)
Weight, shipping lb. (kg) 3,035 (1379)
Weight, operating lb. (kg) 2,610 (1186)
Maximum transport speed 20 mph/ 32.2 kph
Tires/wheels 27 x 9.5 x 15 6 PR
