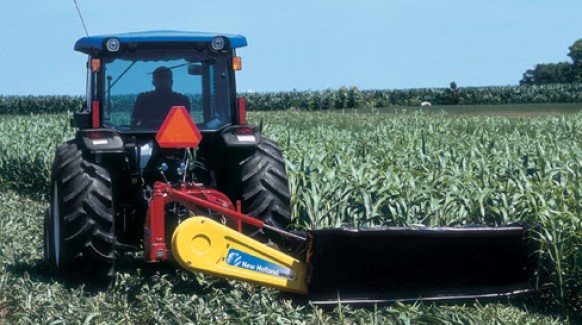

New Holland H6740 Mounted

Heavy-Duty Disc Mowers H6740 Mounted

Double tap to zoom



Features

SMOOTH CUTTING PERFORMANCE
Three 3-point-hitch-mounted H6700 Series disc mowers feature simple and convenient operation and transport. Use them to mow fields, roadsides and around your property.

AUTOMATIC REACTION TO FIELD CHANGES
A flotation spring on H6700 mounted mowers allows for vertical cutterbar movement over field obstructions. In addition, a spring-loaded breakaway latch allows the cutterbar to swing back if it hits an immovable object in the field.

CHANGE QUICKLY FROM FIELD TO ROAD
When you’re ready to hit the road, use remote hydraulics to raise the H6700 mounted mowers to a locked vertical transport position. A removable parking jack stand and convenient onboard storage location are provided on both mounted and pull-type models.

Specifications

H6740 Mounted
Cutter Bar
Cutting width ft. in. (mm) 7' 10" (2388)
Cutting height in. (mm) 0.95-3.25 (24-82.5)
Cutter bar tilt angle degrees 0 to -10
Cutter bar operating range degrees +18 to -32
Breakaway angle degrees 19
Cutter bar floatation Vertical adjustable spring
Type cutterbar MowMax™ cutterbar, modular, w/individual sealed reservoirs
Number of discs 6
Knives per disc 2
Disc cutting diameter in. (mm) 19.7 (500)
Disc drive Bevel gears in sealed modules
Disc speed RPM 3,000
Cutter bar gear protection Std. ShockPRO: easy replace ShockPRO hub with a partial complement of sacrificial splines
Swath width, approx standard** in. (mm) 94 (2388)
Swath width with optional swathboards** in. (m) 62 (1575) includes LH & RH swathboards
Driveline
Minimum PTO horsepower required hp (kW) 55 (40.9)
Input speed RPM 540
PTO shaft spline/size required 6-spline/ 1-3/8"
Driveline protection Belt drive to cutter bar
Overrunning clutch Standard
Belt tension Spring-loaded tensioner with adjustment gauge
Hydraulics and Hitch
Hydraulic circuits required One remote
Minimum relief pressure required psi (bar) 1,500 (104)
Hitch Category I or II
Dimensions and Weight
Overall width in. (mm) 160.25 (4070)
Overall length in. (mm) 50.5 (1283)
Height - transport position* in. (mm) 119.5 (3035)
Weight, shipping lb. (kg) 1,610 (730)
Weight, operating lb. (kg) 1,460 (662)
Maximum transport speed NA
Tires/wheels NA
