New Holland Duratank 2000S

DuraTank™ Side-Delivery Spreaders Duratank 2000S

Double tap to zoom



Features

SPREAD RIGHT WITH NEW HOLLAND

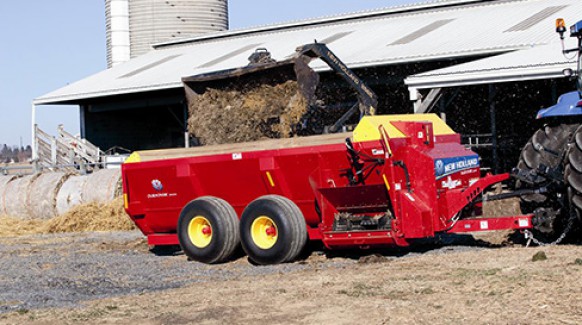

Depend on DuraTank™ side-delivery spreaders to easily handle a wide variety of material. The right-side discharge makes the DuraTank spreader is ergonomically more convenient and comfortable to operate.

UNIFORM SPREAD, LESS MAINTENANCE

The overshot expeller on the New Holland DuraTank spreader is designed to break up material and spread in a uniform pattern. The expeller is less complicated to maintain since no shroud adjustments are necessary to maintain a uniform spread pattern.

HANDLE THE WIDEST VARIETY OF MATERIAL

DuraTank side-discharge spreaders handle all sorts of material and can even be used to replace bedding.

  • Pen/bedded pack manure

  • Gutter slurry manure

  • Sand-laden manure

  • Poultry litter

  • Bedding material

  • Soil amendments

  • Mulch & compost

  • Vegetable waste

  • Bio-Solids



THREE DURATANK™ MODELS
Three models offer something for every size job.

  • The 2009-gallon 2000S and 2596-gallon 2600S are sized for small and medium beef and dairy operations. The lower-profile design is ideal for side loading with a skid steer and is easily positioned below low barn cleaners.

  • The 3377-gallon 3400S features an additional support and lower tank support gussets for added strength to haul the heaviest loads.


OPTIONAL DIGI-STAR® NUTRIENT TRACKER™

The Digi-Star option organizes and records your applications with ease, making it easy to keep in compliance with EPA and DNR-CAFO regulations and assisting with managing fertilizer costs. A scale weighs each load and records the values. Additional levels of the option add a GPS feature to provide graphs and mapping

Specifications

Duratank 2000S
Specifications
Capacity, gal. 2,009
Capacity, cu/ft. (m³) 269 (7.62)
Weight, lbs. (kg) 6,860 (3112)
Stress Proof Spindle Size, in. (mm) 2.5 (63.5)
Wheel Hub 8 bolt
Hub Capacity, lbs. (kg) 5790 (2626)
Side Loading height, in. (mm) 69 (1753)
Height at rear, in. (mm) 70 (1778)
Tank Width-Top, in. (mm) 76 (1930)
Overall Width, in. (mm) 85 to 91* (2159 to 2311)*
Overall Length, ft. in. (mm) 22' 8" (6909)
Auger Diameter, in. (mm) 24 (610)
PTO Speed 540 RPM
Tractor requirement, PTO hp (kW) 120 (90)
Hydraulic remote circuits required 2
