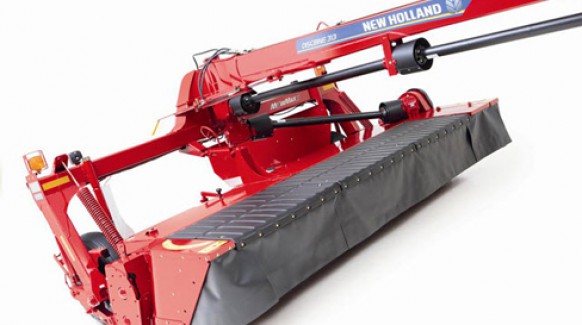

New Holland Discbine® 313 (flail)
Double tap to zoom
MOWMAX™ II LARGE-DISC CUTTERBAR
Originally featured on Durabine™ heads used on Speedrower® self-propelled windrowers, the rugged MowMax™ II cutterbar features larger gears, bearings, interconnecting shafts, and big 24.3-inch discs for maximum durability. All interconnecting drive shafts feature a cut spline and are heat-treated for maximum durability. A larger and heavier ShockPRO™ hub completes the drive components to protect the cutterbar driveline for maximum uptime.
3-YEAR MOWMAX™II DISC CUTTERBAR WARRANTY
New Holland backs the MowMax™II disc cutterbar with three full years of factory warranty. That’s three full years including the base one-year base machine warranty plus two additional years on the cutterbar assembly excluding common wearing parts. See your authorized New Holland dealer for complete program details.
THE BENEFITS OF BIG DISCS
A larger disc diameter allows for closer cutting with less cutterbar tilt for consistent cutting height without scalloping. You can easily adjust cutting height hydraulically from ¾ to 2 ¾ inches with standard skid shoes. The increased surface area of the larger discs and the “tapered skirt” disc profile provide a smoother transition of crop to the conditioner for more uniform conditioning and reduced power consumption. Enhanced durability is built into the design with heavy, full-coverage, cast rock guards for ample protection.
REDUCED CROP CONVERGENCE
Converging disc modules have been eliminated on the Discbine 313 and reduced to just one pair on each end of the Discbine 316. This greatly improves crop flow and improves the transition of cut crop to the conditioner, which means cleaner cutting on the ends and with more uniform conditioning.
WIDE SWATHS. FAST, EVEN DRYING.
New Holland’s WideDry™ conditioning systems are over 22% wider than the conditioning systems on previous Discbine models. This results in a thinner crop mat that feeds smoothly through the conditioning system. Uniform conditioning aids in faster drying in the field. Crop transitions more smoothly from the cutterbar to the conditioning system, reducing crop feeding issues, particularly in thick grasses, cane, and other high-volume crops. Choose from chevron-patterned intermeshing rubber or steel rolls, or LeaningEdge™ flails to suit your conditioning needs.
CONDITIONING SPEED ADJUSTMENTS
Roll conditioning systems generate air movement that can blow lighter crop away from the cutterbar and adversely affect cutting quality. To help prevent this, you can slow roll speed from 750 rpm to 640 rpm by switching the sheaves on the roll drive. The decreased roll speed minimizes air bursts while maintaining cutterbar speed to provide excellent cut quality in light crop conditions.
CONTROLLED CROP DRYING
The Discbine 313 and 316 allow you to lay down a wide swath for more sun exposure and better natural drying. Wedges are mounted on the rear swath board to help spread the crop mat. Customize your windrow and swath formation using the longer, adjustable windrow shields and a swath gate that features rubber flashing for improved crop flow and a new spring-assist adjustment lever for easy changes.
MORE RESPONSIVE FLOTATION
Improved header suspension geometry contributes to more responsive flotation. The innovative header linkage allows the header to move up and rearward to dissipate force should you encounter an obstacle. To provide for free flotation of the head, the flotation springs are anchored to the trail frame with a ball-joint to reduce binding as the header moves through its full flotation range. In addition, tires and rims are located to the inside of the frame, allowing for better contour following on uneven terrain.
The new MowMax II cutterbar’s smart design allows driving the cutterbar from only one end, which simplifies maintenance and leaves the top of the header uncluttered. All u-joints are easily accessible for servicing, and the lube interval has been extended to 50 hours so you spend less time on maintenance.
SWIVEL HITCH OPTIONS
Choose either the drawbar swivel hitch or two-point swivel hitch and get maximum turning performance with zero driveline wrap-up. PTO power is transferred from the front swivel gearbox to a second swivel gearbox at the rear of the tongue that maintains perfect alignment of the output driveshaft to the cutterbar- and conditioner-drive gearbox on the left side of the unit.
SIMPLE MAINTENANCE. EASIER ACCESS.
New Holland makes it easy to reach the cutting discs and drive components on every Discbine disc mower-conditioner. Access is even easier on the center-pivot Discbine 313 and 316. Poly bifold upper shields are light, foldable and easy to lift, and they’re more impact-resistant to dents from foreign objects. The driven-end access steel door is double layered to resist denting in that area too. Material overlap keeps curtains in place without the need for clips or magnets.
