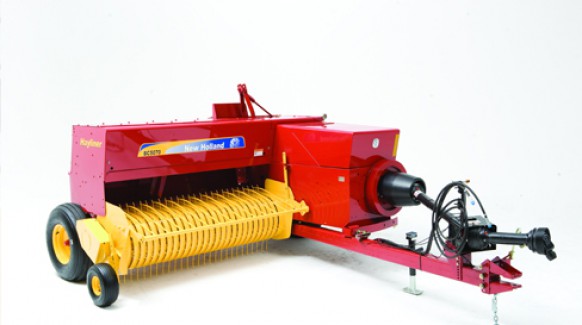

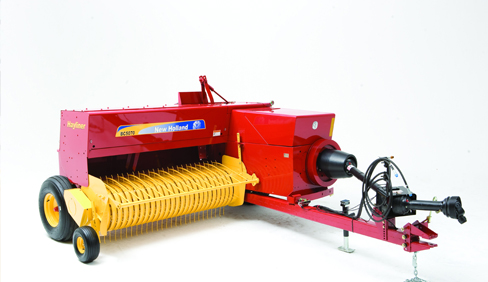

New Holland BC5070 Hayliner

BC5000 Series Small Square Balers BC5070 Hayliner

Double tap to zoom



Features

BC5070 HAYLINER™ - THE HIGH PERFORMANCE COMMERCIAL BALER Model BC5070 Hayliner™ (14'' x 18'') balers provide superior performance for commercial operations offering superior bale density and shape ideal pickup by bale wagons. The BC5070 Hayliner baler is equipped with hydroformatic 4-way bale tension, cast iron hay wedges, a hardened plunger rail, and 12'' longer and 19% heavier bale case for unsurpassed reliability bale after bale. Best of all the twine box is 35% larger than the standard BC5070 to accept larger twine balls so you spend more time baling hay. BC5070 Hayliner™ is not compatible with model 72 bale thrower.

Specifications

BC5070 Hayliner™
Bale Size
Cross section 14 x 18 in. (36 x 46 cm)
Length Adjustable, 12 to 52 in. (31 to 132 cm)
SuperSweep™ Pickup
Width inside 75 in. (1.9 m)
Width on flare 80 in. (2 m)
Number of tines 156
Number of tine bars 6
Floating Windguard Thirteen rods
Drive V-belt to roller chain to “lost motion” reel drive
Gauge Wheel 15 x 6.00 x 6; pneumatic
Hydraulic Pickup Lift Standard
Bale Chamber
Feeding System High-Capacity, Rotary Feeding System
Number Feed Rotors 3
Packer Fork Standard - Adjustable
Feed Opening 283 sq. in. (1826 sq. cm)
Standard Density System 4-way Hydroformatic
Optional Density System -
Bale Case Heavy-Duty
Plunger
Stroke length 30 in. (76.2 cm)
Speed (540 rpm) 93 SPM
Material High Strength Steel
Plunger Rail Heavy-Duty
Tying Mechanisms
Twine knotter Heavy-Duty
Billhook Hardened-Steel
Wire twister -
Protection Shearbolt
Twine capacity 8-Lg. Twine Ball
Wire capacity -
Main Drive
Flywheel weight 248 lb (112 kg)
PTO Power-Pivot, Three-joint PTO
PTO Category Cat. 6 HD
Protection  Shearbolt, overrunning and slip clutches
Gearbox Heat-treated hypoid gears on tapered roller bearings running in an oil bath
Flotation Tires
Right side 11L x 14, 6PR
Left side 14L x 16.1, 8PR
Model 72 Bale Thrower
Compatible NO
Dimensions
Height (max.) 71 in. (180 cm)
Width 120 in. (304 cm)
Length (transport less chute) 217 in. (551 cm)
Weight (twine) 3940 lb (1787 kg)
Weight (wire) -
Tractor Requirement*
Minimum horsepower 75 hp (56 kW)
Minimum weight Tractor weight must be greater than baler weight; excludes bale thrower
Hydraulic requirement 1 double acting, 1 single acting
