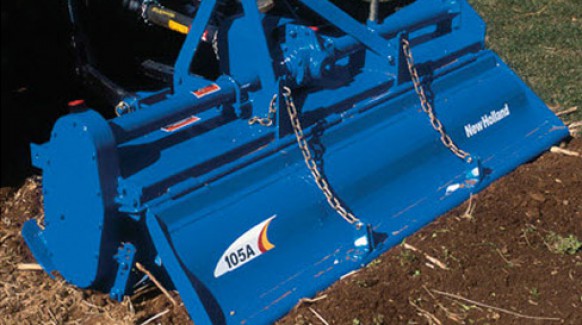

New Holland 105A-72in
MULTI-TASK ON EACH PASS
Get your seedbeds ready for planting and control weeds between rows with a capable rotary tiller. They're built to handle the daily demands of gardeners, nursery owners, landscapers and small farm owners, and are available in widths up to 80 inches so you can get more done with each pass.
DURABLE COMPONENTS, FLEXIBLE OPERATION
The sturdy deck is constructed of steel and connects to your tractor's three-point hitch by a box section steel frame. Outside hitch pin brackets are adjustable for offset operations so you can till close to obstacles or buildings.
The 540-rpm PTO (Power Take Off) is slip-clutch protected to prevent driveline component damage.
LONG LIFE AND SMOOTH PERFORMANCE
Grease fittings mean longer life for driveline universal joints and rotor shaft bearings. And both the input gearbox and side gearbox run in oil for smooth power transmission and superior durability.
ADJUSTMENTS TO MATCH YOUR SOIL
Convenient chain support makes adjusting shield height quick and easy. Simply lower it to thoroughly pulverize the soil, or raise it for coarser textures. Skid shoes also adjust to one of four settings to control tilling depths of 0"-5".
UPGRADE WITH HD MODELS
Choose a heavy-duty model and get one-pass tilling with a powerful gearbox and high-speed tines with greater tip speed. Plus, these models support both Category I and II three-point hitches.
|Approximate Working Width||72"|
|Tilling Depth Adjustment with Guide Shoe||0-4.5"|
|Maximum Tilling Depth without Guide Shoes||7.25"|
|Offset Adjustment to Right||11"|
|PTO hp Rating||45|
|Rotor Drive Type||Chain|
|Drive Protection||Slip Clutch|
|Rotor Speed @ 540 rpm PTO||236|
|No. of Blades||36|
|Blade Tip Speed (fpm) @ 540 rpm||1063|
