New Holland 780GCB

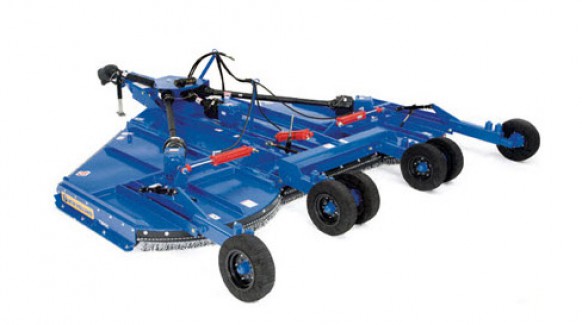

Pull-type Rotary Cutters 780GCB

Double tap to zoom



Features

BLAZE NEW TRAILS
Cut thick grass and weeds or shred stalks and brush with ease. Add a 770 or 780 Series pull-type rotary cutter to your 60-210 hp tractor equipped with a 540-rpm PTO, and you’ve got an all-purpose workhorse to take on your toughest jobs. Plus, the flex-wing design provides easy transport between fields and down narrow roads.

CUT A WIDE SWATH
Updraft blades provide clean, even cutting, and a choice of two models featuring 120-inch rigid or 180-inch flex-wing cutting widths make short work of large areas and tough conditions.

HEAVY-DUTY CONSTRUCTION
Built tough for the long haul, these cutters feature heavy-duty, 7-guage decks for superior reliability, replaceable skid shoes and a five-year gear box warranty, limited to defects in workmanship/material, for peace of mind.

EASY DOES IT
These standard features make your workday easier:
• Protective deck rings and a rear safety chain keep equipment secure.
• Wing lift hydraulics allow easy transport.
• Jackstand and hitch swivel clevis make hookup easy.

Specifications

Specifications  780GCB
Type 15' Triple Flex
Tractor HP (max.) 210 HP
Cutting Width 180"
Overall Width 187"
Overall Length 180"
Hitch Pull-Type
Driveline Category 540/1000 PT/CV Joint
Gearbox Rating (HP) 255 / 210 HP
Gearbox Warranty 5 Years
Slip Protection Slip Clutch
Deck Gauge 7 Gauge
Side Panel Depth 10.5" x 1/4"
Blade Carrier Pan
Output Shaft Diameter 2" or 2 3/8"
Blade Size 1/2" x 4" Updraft
Blade Tip Speed Center/Out 15,238 / 14,821
Cutting Height (min.) 2 inch
Tail Wheel 3 Spindle
Tire & Wheel 6 tires- 25.75 x 6.75 x 14 (used Aircraft Tires)
Safety Deflectors Front/Rear Chains
Weight (lbs) 5,500
