New Holland 780GC

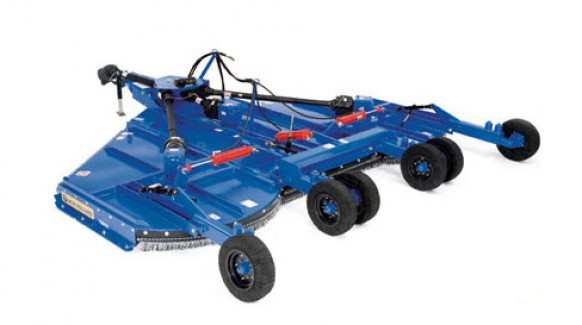

Pull-type Rotary Cutters 780GC
Double tap to zoom
BLAZE NEW TRAILS
Cut thick grass and weeds or shred stalks and brush with ease. Add a 770 or 780 Series pull-type rotary cutter to your 60-210 hp tractor equipped with a 540-rpm PTO, and you’ve got an all-purpose workhorse to take on your toughest jobs. Plus, the flex-wing design provides easy transport between fields and down narrow roads.
CUT A WIDE SWATH
Updraft blades provide clean, even cutting, and a choice of two models featuring 120-inch rigid or 180-inch flex-wing cutting widths make short work of large areas and tough conditions.
Built tough for the long haul, these cutters feature heavy-duty, 7-guage decks for superior reliability, replaceable skid shoes and a five-year gear box warranty, limited to defects in workmanship/material, for peace of mind.
EASY DOES IT
These standard features make your workday easier:
• Protective deck rings and a rear safety chain keep equipment secure.
• Wing lift hydraulics allow easy transport.
• Jackstand and hitch swivel clevis make hookup easy.
|Type||15' Triple Flex|
|Tractor HP (max.)||210 HP|
|Driveline Category 540/1000||PT/CV Joint|
|Gearbox Rating (HP)||255 / 210 HP|
|Gearbox Warranty||5 Years|
|Slip Protection||Slip Clutch|
|Deck Gauge||7 Gauge|
|Side Panel Depth||10.5" x 1/4"|
|Output Shaft Diameter||2" or 2 3/8"|
|Blade Size||1/2" x 4" Updraft|
|Blade Tip Speed Center/Out||15,238 / 14,821|
|Cutting Height (min.)||2 inch|
|Tail Wheel||3 Spindle|
|Tire & Wheel||Laminated|
|Safety Deflectors||Front/Rear Chains|
