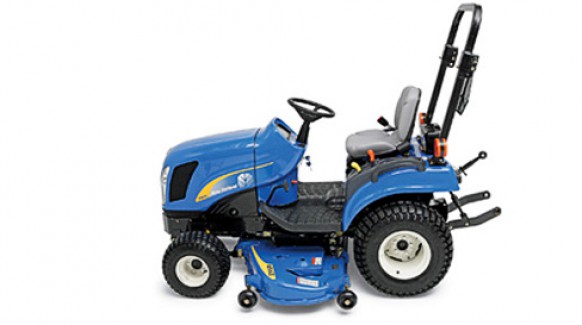

New Holland 266GMS

Mid-Mount Finish Mowers 266GMS

Double tap to zoom



Features



HIGH SPEED BLADES
All models feature high-speed blades that deliver an exceptional cut. And the 84-inch deck model uses four GATOR MULCHER™ blades that provide a generous blade overlap of 1.5" for the cleanest cut around.

FREE-FLOATING 4-BAR LINKAGE
Get a uniform cut even on uneven terrain. The flexible design lets the mid-mount mower move up and down as it follows the ground contour, for a smooth, even cut.

OPTIONAL GRASS COLLECTION SYSTEMS
Quickly attach an optional bagging system to capture mower clippings. The three-bag system allows for maximum capacity and keeps emptying stops to a minimum.

UP AND OUT OF THE WAY
When it is time to switch to your three-point hitch for rear-mounted implements, you don't have to remove the mid-mount mower, just lock it in the convenient raised position.

Specifications

Model  266GMS
Specifications
Cutting width 66"
Cutting height 1"-4"
Overall width 79"
Number of blades 3
Blade type Standard
Blade length/width 23"x2.5"
Blade tip speed Less than 18,000
PTO-Drive Mid
Gauge wheels 2"x6"
Deck spring suspension Yes
Compatible with loader N/A
Tires Agricultural (R1) Yes
Tires Industrial (R4) Yes
Tires Turf (R3) Yes
Tires Galaxy Turf N/A
