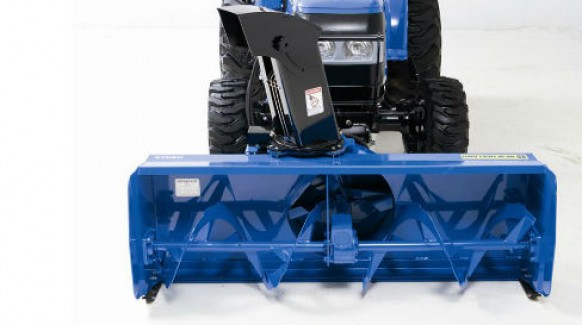

New Holland 74CSHB
Double tap to zoom
Save time with the Quick-Attach sub frame system that makes hookup simple with no tools required. It also accommodates front blades and rotary brooms using one, common hitch assembly and frame.
Whatever mother nature throws at you, you can throw aside. A powerful auger breaks up even compacted snow, and a strong impeller blows it up and out the adjustable chute. An open design prevents wet snow from building up around the auger.
The blower fan uses three or four blades for maximum fuel economy.
ADJUSTABLE SKID SHOES
High carbon, heavy-duty shoes allow you to vary settings for efficient operation in changing conditions.
Shear bolts provide protection from hard objects and cutting edges are reversible and replaceable for long life and easy maintenance.
Optional features boost your efficiency:
• Hydraulic chute rotator and deflector let you adjust height and direction of snow discharge without leaving your seat.
• Three-part chute increases accuracy of snow discharge.
• Drift cutters on 51-, 63- and 72-inch models add 5 inches of width to cover a wider wheelbase
|Number of Fan Blades||4|
|Fan Drive||Gear Box Reduction|
|Auger Drive||#60 HD Chain|
|Two-Part Chute with||n/a|
|Manual Chute Rotation||Optional|
|Hydraulic Chute Rotation||Standard|
|Electric Chute Rotation||Optional|
|Skid Shoe-Std. Adj.||Standard|
