New Holland 63CS

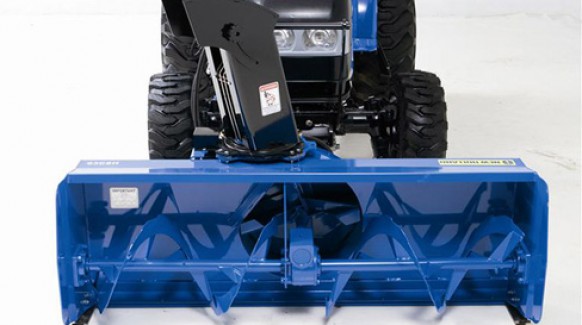

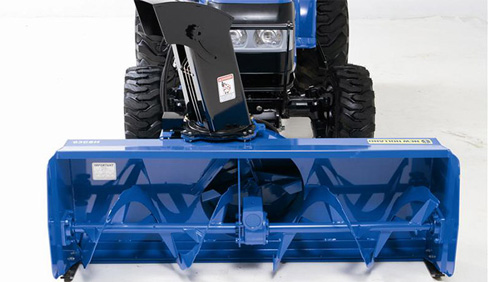

Front Snow Blowers 63CS

Double tap to zoom



Features



QUICK-ATTACH SYSTEM

Save time with the Quick-Attach sub frame system that makes hookup simple with no tools required. It also accommodates front blades and rotary brooms using one, common hitch assembly and frame.

TWO-STAGE OPERATION

Whatever mother nature throws at you, you can throw aside. A powerful auger breaks up even compacted snow, and a strong impeller blows it up and out the adjustable chute. An open design prevents wet snow from building up around the auger.

FUEL EFFICIENT

The blower fan uses three or four blades for maximum fuel economy.

ADJUSTABLE SKID SHOES

High carbon, heavy-duty shoes allow you to vary settings for efficient operation in changing conditions.

LONG LIFE

Shear bolts provide protection from hard objects and cutting edges are reversible and replaceable for long life and easy maintenance.

OPTIONS

Optional features boost your efficiency:
• Hydraulic chute rotator and deflector let you adjust height and direction of snow discharge without leaving your seat.
• Three-part chute increases accuracy of snow discharge.
• Drift cutters on 51-, 63- and 72-inch models add 5 inches of width to cover a wider wheelbase

Specifications

Specifications  63CS
Overall Width 63"
Cutting Width 63"
Cutting Height 22"
Number of Fan Blades 4
Fan Diameter 18"
Auger Diameter 14"
Fan Drive #50 HD Chain
Auger Drive n/a
Two-Part Chute with n/a
Manual Chute Rotation Standard
Hydraulic Chute Rotation Optional
Electric Chute Rotation Optional
Shearbolt Protection Standard
Skid Shoe-Std. Adj. Standard
Weight 488 lbs.
