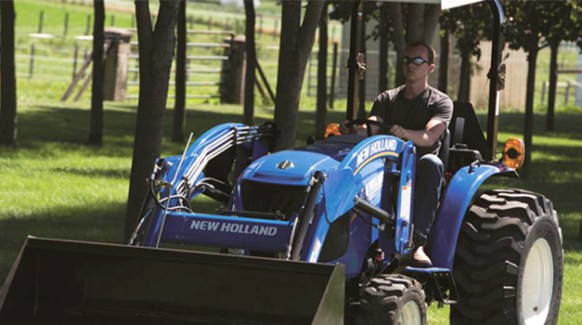

New Holland 140TL

Economy Compact Loaders 140TL

Double tap to zoom



Features

STRONG-ARM YOUR WAY THROUGH TASKS
Give your economy compact tractor the strength to handle even not-so-compact loads. These loaders offer construction-grade toughness at a value price with all the features you need to get the job done well.

HEAVY-DUTY CONSTRUCTION
Durable components, such as heavily reinforced frames, durable chromed hydraulic cylinder rods and non-rotating, rifle-drilled pins, deliver excellent reliability and long life.

EASY ON, EASY OFF
Attach or remove in minutes, without tools. With the Quick-Mount system, simply drive towards the loader and the loader tower ramps will guide the loader arms into place without the use of hydraulics.

TAKE CONTROL
The single joystick control mounts on the loader tower and is positioned to the right of the steering wheel for easy operation.

A BETTER BUCKET
Heavy-duty 60-inch and 68-inch buckets are available for tough working conditions. Both buckets are available with reversible bolt-on cutting edges for longer edge life.

Specifications

Model 140TL
Tractor Family/Series
Tractor Compatibility WORKMASTER™ 33 & 37
Loader Specifications
Max Lift Height to Bucket Pivot Pins, ft (mm) Under level bucket, 7.625 (2324.1)
Dump Clearance, ft (mm) 5.3 (1625.6)
Digging Depth, in (mm) -
Lift Capacity to 1500 mm @ Pivot Pins, lbs (kg) 1500 (680)
Breakout Force @ Pivot Pins, lbs (kg) 2700 (1224)
Reach at Max Height, in (mm) -
Maximum Bucket Rollback Angle (degrees) 30,4
Maximum Bucket Dump Angle (degrees) 48
