New Holland 48BL

Box Blades 48BL

Double tap to zoom



Features

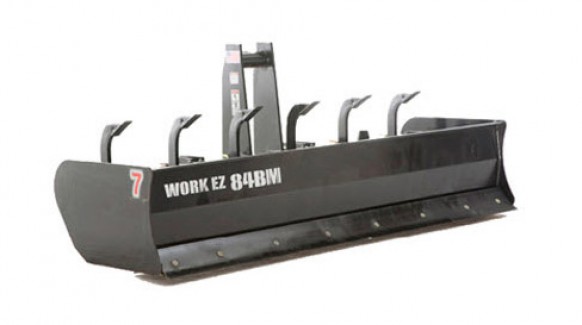

GRADE OUT SURFACES AND BACKFILL LOW SPOTS WITH A WORK EZ BOX BLADE
Get the perfect tool for fast, efficient leveling, grading, scraping and backfilling. These rugged box blades can handle tough jobs at homes or on construction jobsites.

THE RIGHT TOOL FOR THE JOB
Choose from eight different models, ranging from 4’ to 8’ working widths, to match your task and tractor horsepower.

BREAK UP HARD GROUND
Up to eight tempered, scarifier shanks provide superior strength and durability for breaking up hard ground.

WORK WITH EASE AND VALUE
No matter which make, model or year of compact or utility tractor you work with, if it has a three-point hitch, there’s a Work EZ implement ready to help you do more, for less.

Specifications

Specifications 48BL
Working Width 4'
Overall Height 35 1/2"
Box Depth 17"
Tractor hp (max.) 30 hp
Hitch Category I
Endplate Thickness 3/16"
Number of Shanks 4
Cutting Edge 1/2" x 6" Rev.
Number of cutting edges 2
Shank Adjustment Manual
Hydaulic Lift n/a
Hinged Rear Flap w/ Cut Edge n/a
Weight 313 lbs.
