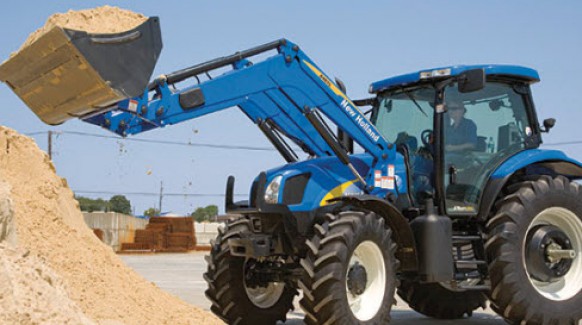

New Holland 800TL
800TL Series 800TL
Double tap to zoom
Strong and rugged arm design featuring double C channel construction lets you handle bigger loads. Larger, premium hydraulic cylinders have increased capacity for better performance and improved productivity. The overlapping knee plate and rugged torque tube evenly distribute workload stress.
Located behind the torque tube and covered for added protection, the central hydraulic control valve distributes oil flow evenly to all loader cylinders for maximum lift and breakout. All of the loader interface connections now include environmentally friendly, no leak flat face couplers designed to relieve pressure for easier connection. Individual quick couplings are standard; a new "fast snap" multi-coupler is also available which includes the electronic connections as well as the hydraulic.
A simple four-way joystick makes loader operation easy and with increased roll back angles, the operator keeps control of the loader and attachments with ease and helps to further minimize spillage.
It's easy on, easy off with the simple, no-tools Quick-Attach™ system. Simply drive in, roll back, and you're off to work. The pin and safety mechanism stay with the loader, and a green indicator on the inside of the loader arm lets you know when the loader is locked in position and ready to use. Plus, a skid steer or EURO style quick-attach adapter lets you use your skid steer attachments.
HIGH FUNCTION OPTIONS
Dampen shock loads from transmission to the tractor with the Soft Ride feature located inside the torque tube. This powerful shock absorber provides smoother operation and maneuvering with a choice of three manual positions to control shock up and/or down. Mechanical self-leveling is also an option for most models and provides a more stable working environment on uneven or rough terrain. A live third function hydraulic circuit is also available for users who want additional functionality.
