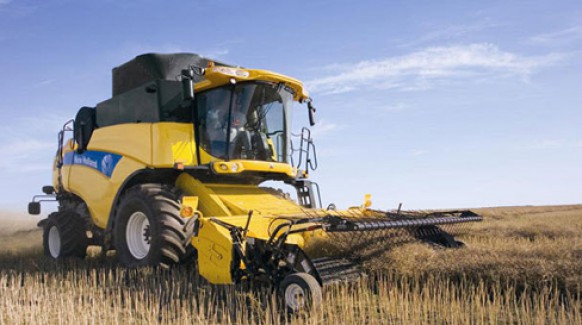

New Holland CX8090 Elevation

Double tap to zoom



Features

ELEVATING SUPER CONVENTIONAL COMBINES
CX8000 Elevation super conventional combines are raising the stakes in terms of productivity. Reap the benefits of the world’s most powerful conventional combines, producing over 490 hp for unsurpassed capacity. The CX8000 Elevation is perfectly at home in all crops, from wheat to corn, rice to canola. No matter how rolling the terrain. No matter how demanding the conditions. The CX8000 Elevation combine will elevate your performance.

Specifications

CX8090 Elevation
Combine Class
Combine Class
Grain heads
Cutting width [ft. (m)] 20-40 (6.1 - 12.19)
Corn heads
Number of rows > Folding corn heads (rows) 6 - 10
Number of rows > Rigid corn heads (rows) 6 - 12
Automatic header control systems
Autofloat™ system Standard
Straw elevator
Front face adjustment Standard
Lateral Flotation Standard
Cab
Leather air-suspension seat Optional
Instructor’s seat Standard
IntelliView™ IV monitor with adjustable position Standard
Automatic climate control and coolbox Standard
Automatic climate control and fridge Optional
New Holland Precision Land Management systems - Guidance systems
IntelliSteer™ automatic guidance system Optional
IntelliCruise™ System Optional
Automatic row guidance system for corn heads Optional
New Holland Precision Land Management systems - Precision farming
Moisture measuring Optional
Yield measuring and moisture measuring Optional
Full Precision farming package including yield measuring and moisture measuring, DGPS yield mapping Optional
PLM™ desktop software and software support service (1 year) Optional
Threshing drums
Width [in. (m)] 62 (1.56)
Diameter [in. (m)] 29.5 (0.75)
Drum Concave
Area [sq.in. (m²)] 1829 (1.18)
Wrap angle (degrees) 111
Beater
4 paddles and 4 teeth rows (alternating) [in. (m)] 18.75 (0.475)
Rotary Separator
Rotary Separator Standard
Multi-Thresh™ system Standard
Strawwalkers
Number 6
Opti-Speed™ variable strawwalker speed Standard
Cleaning
Self-levelling cleaning shoe Standard
Opti-Clean™ cleaning system*** Standard
Cleaning fan
Opti-Fan™ system Standard
Grain tank
Capacity with remote foldable covers [bu. (l)] 326 (11,500)
Capacity with manual foldable extensions [bu. (l)] 350 (12,300)
Engine* complaint with Tier 4 emission reguations
Engine* complaint with Tier 4 emission reguations FPT Cursor 9*
ECOBlue™ SCR system (Selective Catalytic Reduction) Standard
Gross engine power @ 2100 rpm - ISO 14396 - ECE R120 [kW/hp(CV)] 330/449
Maximum engine power @ 2000 rpm - ISO 14396 - ECE R120 [kW/hp(CV)] 360/490
Approved Biodiesel Blend B20**
Fuel tanks Diesel / AdBlue capacity
Fuel tanks Diesel / AdBlue capacity [gal. (l)] 265/32(1000 / 120)
Transmission type 4-speed hydrostatic
Maximum speed standard / optional [mph. (kph)] 19 / 25 (30 / 40)
Residue management
Integrated straw chopper Standard
Chaff spreader Optional
Dimensions with traction wheels (****)
Dimensions with traction wheels (****) 900/60R32
Wheelbase [ft. (m)] 12’4” (3.76)
Maximum height in transport position [ft. (m)] 13’ (3.96)
Maximum width - transport [ft. (m)] 12’9” (3.9)
Weight
Weight without hreader, chaff spreader and straw chopper [lbs (kg)] 17,694 (8026)
