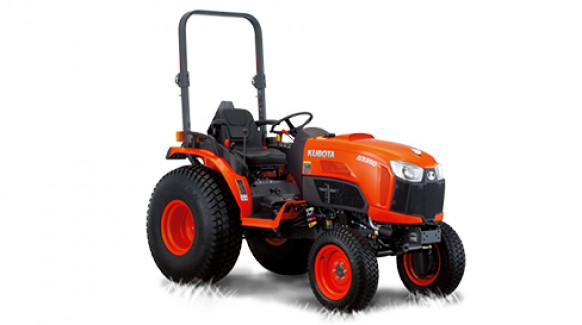

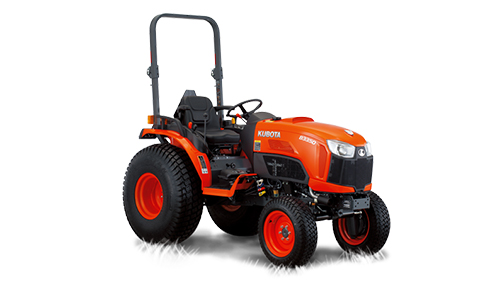

Kubota B3350 ROPS
Cleaner Emission Diesel Engines
The B50 series diesel engines are built for greaterpower with cleaner emissions. The B3350's liquid-cooled E-TVCS (Emissions - Three Vortex Combustion System) engine delivers increased power and high torque for all the tractor strength you need, while significantly lowering emissions. The Diesel Particulate Filter (DPF) Muffler reduces emissions to make it compliant with the latest Tier 4 Final emission regulation.
New Integrated Cab Design
The B50 series is the first tractor in its class to employ an integrated cab. The cab and overfenders are integrally welded to the body's sheet metal parts which allows for a 4-pillar construction with rounded glass that delivers more cab space and a wider field of view. The integrated design also eliminates holes in the floor for the pedals for an environment that minimizes noise and unwanted dust from entering the cab for greater comfort.
Spacious Quiet Cab
The B50 series brings maximum comfort to the operator thanks to the new integrated cab. The 4-pilar design with rounded glass offers more space and panoramic views of your surroundings. Doors open wide for easier entry into and exit from the cab. Comfort is also enhanced through better noise insulation for a quieter interior. The interior includes a storage compartment, cup holder, a pocket for an operator's manual and tool box, all within arm's reach.
Keep your cab clean and almost dust-free even after long hours of work. The new integrated cab moves the pedal connections from the floor to to the steering column to eliminate any holes in floor. The cab is constructed to minimize unwanted dust from entering inside.
Deluxe Suspension Seat
The new suspension seat is specially designed to absorb shock reducing operator fatigue to make your ride comfortable even under extremely harsh conditions. Arm rests are standard equipment for added comfort.
12V Socket & Storage Compartment
Charge your cell phone or electronic devices with the 12-volt socket next to the storage compartment. Place your device in the storage compartment above the LCD panel, making it readily accessible.
With the rounded cab and strategically placed air vents that optimize air circulation. The air conditioner keeps you cooler on hot days and the heater keeps warmer on cold days for year-round environment comfort.
|A. Front Storage Compartment||Other Standard Equipment for Cab:|
|B. Front Wiper||Speakers|
|C. Hanger||Interior light|
|D. Arm Rest||Cab Options:|
|E. Tilt Steering Wheel||Halogen rear work lights|
The loader joystick and valve are integrated with the control console and standard equipment on the B50 series. It does not have to be retrofitted when mounting the loader, providing a cleaner look.
User friendly Control Layout
For easier access and smoother operation, the levers are logically arranged on the left and right consoles and switches are concentrated around the instrument panel.
Kubota's new multi-stage notch-type cruise control keeps your working speed constant.
For easier operation of the HST pedal and more right-side foot space, the brake pedal has been moved to the left side of the steering column.
1. Storage Compartment
2. LCD Panel
3. 12V Socket
A. Loader Lever
B. Cruise Control Lever
C. 3-pt Control lever
D. Optional Rear remote Valve Lever
E. PTO Selection Lever
F. PTO Selection Lever
G. Gear Shift Range lever
H. 4WD on/off Lever
For the easier opening and closing and more convenient access to the engine.
Fuel Tank Filler
The fuel tank filler has been shifted from the center to the right side of the hood to make filling easier.
Rear Window Vent
The cleverly designed rear window hatch lock opens just enough for fresh air ventilation while minimizing grass, hay and dust particles from entering the cab. It is also convenient when you need to talk or listen to people from inside the cab when the doors are closed.
Move from location quicker. The B3350's engine gross horsepower has been increased to 33 HP for a higher forward traveling speed of 14.3mph*, while providing lower emissions at the same time.
*When equipped with turf tiers.
Hydraulic Control Systems
The position control valve provides easier 3-point hitch control with adjustments in smaller increments which are often required when attaching/detaching implements or when performing sensitive jobs.
Increased PTO HP
The PTO horsepower for the B3350 has been increased to 27.0HP.
With the capable PTO horsepower, the Powerful Category I 3-point hitch and the standard equipped telescoping lower links make hooking up and working with large implements, such as a rotary cutter, box blade and finishing mower, easier.
Washer Fluid Tank
The washer fluid tank has been moved to the outside of the cab to make checking the fluid levels and refilling much easier.
Rear Wiper & Defogger
The standard equipped rear wiper and defogger enhance rear visibility when needed.
|Type||E-TVCS, liquid cooled, 4-cylinder diesel|
|PTO horsepower HP (kW)||27.0 (20.1)|
|Engine gross horsepower* HP (kW)||33.0 (24.6)|
|Rated RPM rpm||2500|
|Bore and stroke in. (mm)||3.1 × 3.1 (78 × 78.4)|
|Displacement cu. in. (cc)||91.5 (1498)|
|Air cleaner||4.5 inch Dual paper element|
|Cooling system||Pressurized radiator|
|Radiator fan||Radial air flow|
|Fuel tank gal ( )||7.3 (27.5)|
|Cooling system gal ( )||4.5 (4.3)|
|Engine oil gal ( )||5.1 (4.8)|
|Transmission case gal ( )||4.0 (15)|
|Clutch||N / A|
|Transmission||HST (3 ranges)|
|Final drive||Spur gear|
|Brake||Multi-plate wet disc|
|Total pump output gpm ( /min.)||8.7 (33.1)|
|Hydraulic outlet||Rear outlet|
|3-point hitch||Category I|
|Hydraulic control system||Position control valve|
|Lift capacity at lift point lbs. (kg)||2139 (970)|
|24" behind LP lbs. (kg)||1676 (760)|
|Steering||Hydraulic power steering|
|Standard tire size|
|Rear (Farm)||12.4 -16|
|Forward mph (km/h)||0-14.3 (0-23.0)|
|Reverse mph (km/h)||0-11.4 (0-18.4)|
|Overall length (w/o 3P) in. (mm)||101.2 (2570)|
|Overall width (min. tread) in. (mm)||53.7 (1365)|
|Overall height in. (mm)||88.4 (2245)|
|Wheelbase in. (mm)||65.6 (1666)|
|Ground clearance in. (mm)||14.6 (370)|
|Turning radius with brake feet (m)||6.9 (2.1)|
|Weight lbs. (kg)||1896 (860)|
|Other Features|| Cruise control, Tilt-steering, Deluxe seat, Parallel link with damper seat suspension,
Lower link stabilizer, Drawbar, Tool box, 12V power socket
|Transport height in. (mm)||80.7 (2051)|
|Stabilizer spread - transport in.(mm)||51.8 (1315)|
|Ground clearance in.(mm)||12.6 (319)|
|Digging Depth 2ft flat bottom in.(mm)||92.5 (2349)|
|Operating height fully raised in.(mm)||119.2 (3029)|
|Loading height (Length of dipper cyl.=715mm) in.(mm)||66.7 (1693)|
|Loading reach (Length of dipper cyl.=715mm) in.(mm)||50.8 (1290)|
|Reach from swing pivot in.(mm)||124.6 (3165)|
|Swing pivot to rear axle center line in.(mm)||47.7 (1211)|
|Angle of departure per SAE J1234 deg.||13.8|
|Swing arc deg.||180|
|Maximum Lift Height (to bucket Pivot Pin) in. (mm)||84.6 (2150)|
|Clearance with attachment dump in.(mm)||67.4 (1712)|
|Maximum Dump Angle deg.||38.1|
|Max.Rollback Angle deg.||28.6|
|Lift Capacity (pivot pin) lbs.(kg)||1146 (520)|
|Lift Capacity (19.7 in. forward) lbs.(kg)||827 (375)|
|Breakout Force (pivot pin) lbs.(kg)||2321 (1053)|
|Breakout Force (19.7 in. forward) lbs.(kg)||1691 (767)|
