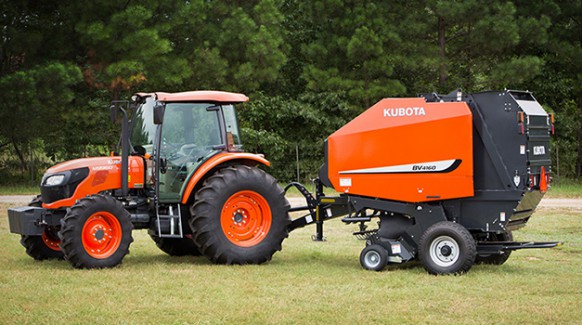

Kubota BV4160 Econo
BV Series Balers BV4160 Econo
Double tap to zoom
High Capacity Pick-Up
Kubota's small diameter pick-up offers superb in field performance. With its low profile design and closely spaced tines, Kubota balers can cleanly lift even the shortest crop. The pick-up is designed for high capacity and efficient intake. This provides a smooth and even crop flow into the baler. The BV4160 Econo model bales are 4 feet wide and up to 5 feet tall.
Kubota's BV4160 Econo is fitted with an efficient fork feeder intake system. This system provides a direct feed into the bale chamber. The wide opening allows almost unrestricted intake capacity, for a fast and efficient baling process. In conjunction with a wind guard, the fork feeder ensures a consistent crop flow even when in delicate crops such as bermuda and alfalfa. This model comes with a 67" pick-up.
Kubota's BV4160 Econo bale chamber offers a combination of 3 rollers and 5 wide laced belts. This mixed chamber ensures a smooth bale start whatever the intake system, offering smooth bale rotation and reduced crop loss, even in dry conditions. As the bale grows, the belt tensioning arm is subjected to steadily increasing resistance from two hydraulic cylinders and a spring tensioner. So as the bale diameter grows, so does the bale's density. The result is a very firm bale.
The main bale chamber drive is a heavy duty pitch chain. This allows for a longer lifespan and reduced maintenance. And the split drive gearbox ensures that power is distributed evenly, reducing wear and power requirements.
Twine TyingAutomatic twin tying with the fast acting double tube system means simultaneous binding of both edges of the bale, keeping binding time to a minimum. Over crossing of twines in the center of the bale provides no loose ends at the end of the binding cycle.
Focus Control Terminal
The Focus Terminal is a universal control terminal which can also be used with other Kubota implements. It gives you full control of all functions from the tractor cab, and are shown on a large and very clear digital display. The Focus terminal monitors and controls all necessary functions with all relevant parameters/ information visible at a glance. The control box is also driving the binding automatically without any intervention from the operator.
