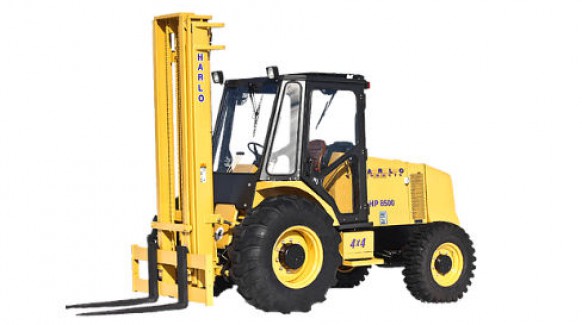

Harlo HP8500

Double tap to zoom



Features

Tightest Turn Radius in Industry
Industry's Fastest Lift Speeds
20 Mast Configurations
Extended Mast Tilt Standard
Cab Enclosure Optional (can include A/C and Heat )
Optional Integrated Pipe Clamp

HP8500Masts


Features of HP8500 with John Deere Engine

  • John Deere Turbocharged Diesel Engine
  • Easy Operator Access to Engine
  • Excellent Visibility
  • 25mph max speed
  • 74hp @ 2400rpm
  • Torque: 195ft-lbs @ 1700rpm
  • Lifting Capacity up to 8500lbs
  • Lifting Height up to 14'



Features of HP8500 with Cummins Engine

  • Cummins 4.5L turbo charged Diesel
  • Easy Operator Access to Engine
  • Excellent Visibility
  • 25mph max speed
  • 110hp @ 2500rpm
  • Torque: 347ft-lbs @ 1300rpm
  • Lifting Capacity up to 8500lbs
  • Lifting Height up to 14'

Specifications

HP6500 with Cummins Engine
Engine​
Emission Rating                 Tier 3
Gross Power - hp (kW)  110 (80)
Rated Speed - rpm 2500
No. of Cylinders                         4
Displacement - Cu in                275 (4.5)
Drive Train
Transmission                           Synchromesh
Travel Speed                           25 mph
No. of Speeds FWD               4
No. of Speeds REV                4
Front Tire Size (4WD/2WD)          16.9 - 24
Rear Tire Size  (2WD)                11L - 16
Rear Tire Size  (4WD)                12 - 16.5
Hydraulic System
Main Pump Type                   Gear Pump
Pump Flow gallons/min           32gpm @2500
Performance
Load Center - in (mm)            24 (610)
Mast Tilt Backward                 13*
Mast Tilt Forward                    13*
Side Shift                                 6 in
HP6500 with John Deere Engine
Engine​
Emission Rating                  Tier 4 Interim
Gross Power                             74 hp
Rated Speed                             2400 rpm
No. of Cylinders                         4
Displacement - Cu in                275 (4.5)
Drive Train
Transmission                           Synchromesh
Travel Speed                           25 mph
No. of Speeds FWD               4
No. of Speeds REV                4
Front Tire Size (4WD/2WD)          16.9 - 24
Rear Tire Size  (2WD)                11L - 16
Rear Tire Size  (4WD)                12 - 16.5
Hydraulic System
Main Pump Type                   Piston Pump
Pump Flow gallons/min           32gpm @2500
Performance
Load Center - in (mm)            24 (610)
Mast Tilt Backward                 13*
Mast Tilt Forward                    13*
Side Shift                                 6 in
