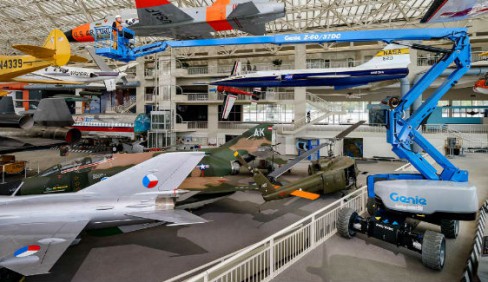

Genie Z®-60/37 DC & FE

Double tap to zoom



Features

Measurements

• 65 ft 7 in (20.16 m) working height
• 36 ft 7 in (11.15 m) horizontal reach
• 24 ft 3 in (7.39 m) up and over clearance
• Up to 500 lbs (227 kg) lift capacity

Productivity

• 5 ft (1.52 m) jib boom with 135˚ working range
• Digital hour meter with battery charge indicator and diagnostic readout
• 4Wheel AC electric drive system
• Variable speed high efficiency hydraulic power unit
• Self-leveling platform
• Hydraulic platform rotation
• Proportional joystick controls
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent, motion and travel alarm
• 355° non-continuous turntable rotation
• Locking turntable covers
• Positive traction drive
• Telematics ready connector

Power

• 48 V DC battery pack (390Ah FLA standard on DC)
• 48 V DC battery pack (415Ah AGM standard on FE)
• 12 V DC auxiliary power
• 25A temperature compensated smart charge system
• Battery charge indicator
• Low battery voltage interrupt

Platform Options

• Steel 6ft (1.83m) dual entry with side swing gate (standard)
• Steel 8ft (2.44m) tri entry with side swing gate

Jib

• 5 ft (1.52 m) jib boom

Engine Option

• 24.8 HP (18.5 kW) Kubota T4 diesel

Drive Option

• 4WD Electric AC (standard)

Axle Option

• Active oscillation (standard on 4WD)

Tire Options

• Rough terrain foam-filled (standard on FE)
• Rough terrain non-marking foam filled (standard on DC)

Specifications

Max Working Height 65 ft 7 in | 20.16 m
Max Horizontal Reach 36 ft 7 in | 11.15 m
Max Up and Over Clearance (riser extended) 24 ft 3 in | 7.39 m
Below Ground Reach 8 ft 1 in | 2.46 m
Platform Capacity 500 lb | 227 kg
