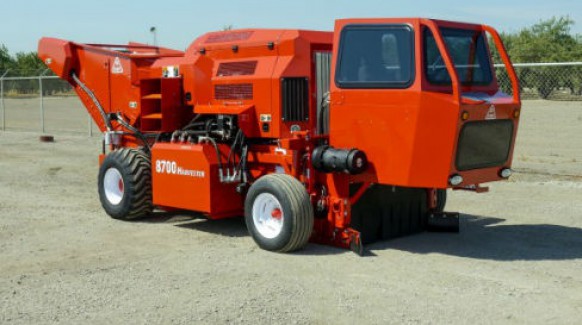

8700 Self-Propelled Nut Harvester 8700
Double tap to zoom
• In-Cab control of fan speed and windboard position to optimize fuel efficiency and reduce dust.
• Next generation air-cab with 1/2” shatter resistant windows to improve safety and comfort.
• Hydraulically powered undershot suction fan for high capacity, easy clean out and end of row shutoff.
• High quality rear view video camera system expandable up to four cameras.
• Hydraulic hitch and on/off elevator chain for end of row flexibility.
• Variable speed rotary trap for reduced dust during pickup and improved end of row cleanup.
• Fail-Safe parking brake system that automatically engages when the engine is oﬀ.
• Turn signals and flashers for improved road safety.
|Engine:||Turbo Tier 4 Final CAT 4.4L|
|Fuel Capacity:||65 gal|
|Hydraulic Oil Capacity:||65 gal|
|Speed:||Top Speed - Low Range 8 mph | High Range 16 mph|
|Pick-up Width:||48 in|
|Cleaning Chain Width:||46.5 in|
|Front Tires:||11L015L 12ply (Tubeless) 35 psi|
|Rear Tires:||400/60x15 5 14 ply (Tubeless) 50 psi|
|Options:||Front Sweep Kit|
|Options:||Front Vee Sweeps|
