Doosan DX63-3 Crawler Excavator

Double tap to zoom



Features

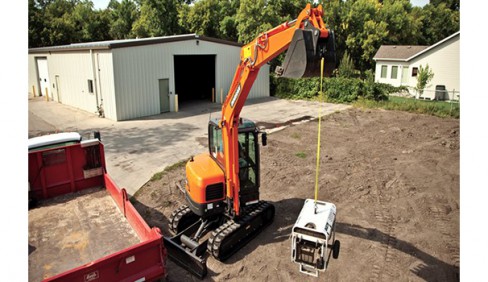

With remarkable over-the-side lifting performance, the conventional tail swing Doosan DX63-3 crawler excavator can take on many difficult jobs.

Excellent slew performance makes it an ideal machine for working on slopes. At the core of the machine is a smooth, refined hydraulic system that gives you ultimate control.

Selectable auxiliary flow rates and the detent (continuous flow) mode allow for more precise attachment performance. The comfortable joystick controls reduce hand fatigue and include two way auxiliary hydraulic control. Offset boom swing improves machine versatility allowing you dig in line with the tracks.

The DX63-3 comes standard with Auto-Shift travel, which shifts the excavator out of high range or low range automatically. Auto-Shift increases travel performance on demand, allowing operators to focus on the direction and speed.

Inside the cab, a multi-language deluxe color panel displays fuel level, coolant temperature, day/time, throttle position and engine rpm. Operators can select auxiliary hydraulic flow modes and rates from the panel. For increased security, an integrated password protection system may be used to help prevent theft.

Other cab features include multiple storage locations and a 12-volt power supply to keep your cell phone charged throughout the workday.

Specifications

MODEL Doosan DX63-3
Engine
Rated Flywheel Power (Gross) 59.4 hp @ 2,100 rpm
Rated Horse Power (Net) 58.6 hp @ 2,100 rpm
Max. Torque (Net) 178 lbf·ft @ 1,365 rpm
Engine Emissions Tier (EPA) T4
Hydraulic System
Main Pump: Displacement
Control Valve: Relief Valve Pressure (Normal) 235 kgf/cm²
Control Valve: Relief Valve Pressure (Boost) 230 kgf/cm²
Main Pump: Max. Flow Rate (each)
Main Pump: Main Relief Pressure
Undercarriage
Upper Rollers: Quantity Per Side 1
Lower Rollers: Quantity Per Side n/a
Track Length 8' 2"
Track Link: Track Gauge 5' 2"
Swing Mechanism
Swing Performance: Max Swing Torque 9526 lbf·ft
Swing Performance: Max Swing Speed (At Efficiency) 9.4 rpm
Travel System/Drive Mechanism
Travel performance: Traction Force (Highest Value) 41 lbf·ft
Travel performance: Traveling Speed - Low (XXX/) 1.68 mph
Travel performance: Traveling Speed - High (/XXX) 2.73 mph
Travel performance: Gradeability 58°
Weights
Operating Weight 13,779 lb
Standard Boom Length 9.51 ft
Standard Arm Length 6.23 ft
Standard Bucket Size 0.17 m³
Shoe Width 1' 3"
Dimensions
Shipping Height - Hose (With Attachment) 7' 9"
Shipping Length (Without Attachment) 18' 7"
Shipping Width (Standard) 6' 5"
Overall Height Over Cab 8' 4"
Working Range
Max Digging Reach (Ground) 20' 5"
Max Digging Depth 13' 6"
Max Loading Height 13' 11"
Digging Force (ISO)
Arm Digging Force - Pressure up 5,765 lb
Bucket Digging Force - Pressure up 9,731 lb
Arm Digging Force - Normal 5,765 lb
Refill Capacities
Fuel Tank 70.01 gal
Hydraulic System 44.91 gal
Engine Coolant 7.13 gal
Engine Oil 2.64 gal
Hydraulic Tank 38.3 gal
Environment
Noise Level: Guaranteed Sound Power Level 97 dBA
Noise Level: Operator 73 dBA
Lift Capacity
Lifting Capacity over front @ Horizontal Distance - 10 ft Above Ground 1,800 lb @ 15 ft
Lifting Capacity over front @ Horizontal Distance - Ground Level 1,580 lb @ 15 ft
Lifting Capacity over front @ Horizontal Distance - 10 ft Below Ground 2,870 lb @ 9.72 ft
