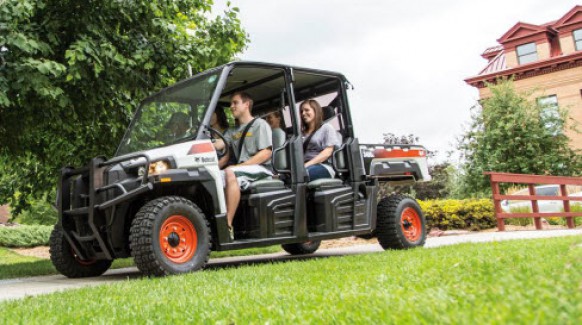

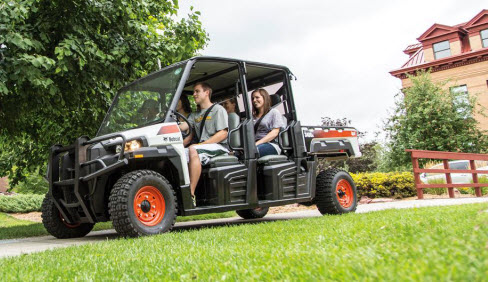

Bobcat 3400XL Utility Vehicle

Double tap to zoom



Features

Bring your entire crew directly to their work without sacrificing any power. With an extra row of seating, the 3400XL can carry up to six people. Combined with industry-leading payload and towing capacities, the 3400XL will quickly become an unstoppable force at your workplace or home.

It all starts with a strong continuously variable transmission (CVT) that packs the punch your work requires. Travel up to 40 mph* with the optional speed kit. Select a diesel or gas model – both with true four-wheel drive. Solid suspension contributes to industry-leading payload and towing capacities.

Performance Features

Industry-leading payload and towing capacities on every model.Uptime Features Front-to-back component protection that keeps your utility vehicle ready when you need it most.

Uptime Features

Front-to-back component protection that keeps your utility vehicle ready when you need it most.

Comfort Features

Many comfort features you’d never expect from a utility vehicle.

Versatility Features

Customize your machine to do much more than carry cargo and transport passengers.

Specifications

Model Bobcat 3400XL
Gas
Bobcat 3400XL
Diesel
ENGINE
Emissions Tier (EPA) n/a Tier 4
Engine Cooling Liquid Liquid
Engine Fuel Gasoline Diesel
Horsepower 40 hp 24 hp
Displacement 35 in³ 63 in³
PERFORMANCE
Operating Weight 1,775 lb 1,875 lb
Travel Speed 35 mph
Travel Speed - Max 40 mph
Travel Speed - Low 16 mph
Travel Speed - Reverse 16 mph
CAPACITIES
Fuel Tank 10 gal
Cargo Box Bed Load Capacity 1,250 lb
Cargo Box Length 43.5 in
Cargo Box Width 54 in
Cargo Box Height 11.5 in
Cargo Box Bed Load Height 33 in
Total Vehicle Rated Capacity 2,150 lb 2,150 lb
DIMENSION
Length 155.5 in
Width 64 in
Height 73 in
Ground Clearance 10 in
Turning Radius 129 in
Wheelbase 116 in
FEATURES
Front and Rear Work Lights Optional
Operating Lights Standard
Cab Enclosure Optional
Washer/Wiper (Front Rear and Roof) Optional
Bed Lift Manual
Cab Heater Optional
Hydrostatic Transmission N/A
Sound Option N/A
Tilt Steering Wheel Standard
Spark Arrestor Muffler Standard
Heater Air Conditioning N/A
