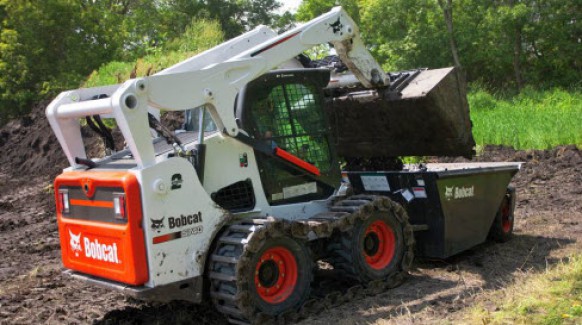

Bobcat S740

Double tap to zoom



Features

The Bobcat® S740 skid-steer loader provides powerful performance with Tier 4-compliant 3.4L engine and generous operating capacity. Combined with an impressive vertical lift path, it’s ideal for nearly any lifting or digging application.

Performance Features

Unmatched power to help you push through your toughest jobs. Benefit from industry-leading breakout force, rated operating capacities, faster cycle times and quicker turns.

Uptime Protection Features

With features and systems that aren’t offered by others, Bobcat® skid-steer loaders are ready to work.

Comfort Features

Climb into the large, comfortable cab and gain unbeatable visibility.

Serviceability Features

Reduce your operating costs through preventative maintenance that gets completed quickly.

Attachment Features

Form a versatile team with your Bobcat® skid-steer loader and the most attachment options.

Specifications

Model Bobcat S740
ENGINE
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 49 hp
Turbocharged Engine Optional
PERFORMANCE
Rated Operating Capacity (SAE) 3,100 lb
Tipping Load 6200 lb
Operating Weight 8794 lb
Travel Speed 7.1 mph
Travel Speed (2-speed option) 12.3 mph
CAPACITIES
Fuel Tank 23.9 gal
HYDRAULIC SYSTEM
System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 23 gal/min
Auxiliary High Flow 30.5 gal/min
DIMENSION
Length 141.6 in
Length without Attachment 114.3 in
Length with Standard Bucket 141.6 in
Width 72.1 in
Width (with bucket) 74 in
Height 81.3 in
Height with Operator Cab 81.3 in
Height to Bucket Hinge Pin 132 in
Reach @ Maximum Height 31.5 in
Turning Radius 85.8 in
Wheelbase 48.3 in
FEATURES
Joystick Control Optional
Air Conditioning Optional
Adjustable Seat Standard
Backup Alarm Standard
BICS System (Interlock) Standard
Cab Enclosure Optional
Sound Option Optional
Cab Heater Optional
Operating Lights Standard
Parking Brake Standard
Radio Optional
Rear Window Standard
Top Window Standard
Lift-Arm Support Standard
Seat Belt Standard
Suspension Seat Optional
Two Speed Travel Optional
Deluxe Instrumentation Optional
Engine Shutdown Standard
Hydraulic Bucket Positioning Optional
High Flow Option Optional
Auxiliary Hydraulics Standard
Bob-Tach Attachment System Standard
Power Bob-Tach Optional
ACS (Switchable Controls) Optional
Ride Control Optional
Rear Hydraulics Optional
Horn Standard
